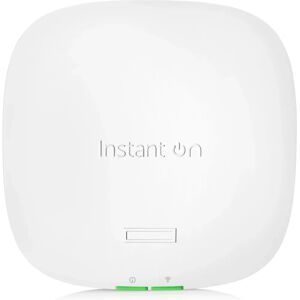

HPE Aruba Instant On AP22 - Wi-Fi 6 Indoor Access Point brings next-generation wireless performance to small offices and modern homes with IEEE 802.11ax technology and a compact white design.

This ceiling- or wall-mountable access point supports dual-band operation on 2.4 GHz and 5 GHz, delivering a combined maximum data transfer rate of up to 1200 Mbit/s (574 Mbit/s on 2.4 GHz and 1200 Mbit/s on 5 GHz) to serve up to 75 concurrent users efficiently.

Equipped with Multi-User MIMO and advanced modulation (256-QAM and 1024-QAM), the AP22 improves throughput and latency for multiple devices at once, making it ideal for busy environments that demand reliable connectivity.

Security is robust with support for OWE, WPA2 and WPA3, and the device includes Bluetooth and Bluetooth Low Energy (BLE) for location services and easy onboarding. Management is simplified via a web-based interface for quick configuration and monitoring.

Installation is flexible thanks to a single RJ-45 Ethernet port with Power over Ethernet (PoE) support and a 12 V DC option, while the internal omni-directional antenna delivers broad coverage with up to 5.6 dBi gain. The unit is lightweight (500 g) and compact (160 x 160 x 37 mm), finished in white to blend into professional interiors.

Typical use cases include small business offices, boutique retail stores, cafés and home offices where secure, high-speed Wi‑Fi for up to 75 users is required. The AP22 is particularly useful where discreet ceiling or wall placement is preferred.

Wi‑Fi 6 (IEEE 802.11ax) dual-band (2.4/5 GHz)
Up to 1200 Mbit/s combined throughput, supports 75 users
PoE, internal omni antenna, BLE and strong security (WPA3)

Technical highlights such as 10/100/1000 Ethernet, low power consumption (max 10.1 W), Kensington cable lock slot and operating temperature range of 0–40 °C make the AP22 a practical and secure choice for modern indoor wireless deployments.
