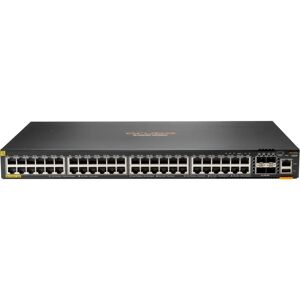

HPE Aruba CX 6200F 48G Layer 3 Managed PoE Switch - 48 Ports
- 48 Gigabit Ethernet ports •
- Power over Ethernet (PoE) 740W •
- Layer 3 Managed switch •
- 4 SFP+ ports •
- More features
Offers updated on: 04/11/2025. Paid and non-exhaustive ads. ★ The ratings are generated from multiple sources, including data provided by the merchant and publicly available information.
Description
Introducing the HPE Aruba CX 6200F 48G Layer 3 Managed PoE Switch, a sophisticated networking solution designed for modern enterprises. Released recently, this switch boasts a robust feature set suitable for high-performance network environments.
This Layer 3 managed switch incorporates an impressive 48 Gigabit Ethernet ports, allowing for seamless data transfer and excellent connectivity. With a switching capacity of 176 Gbit/s and throughput reaching 130.9 Mpps, performance is never compromised.
- Key Features:
- Managed switch, ensuring advanced control and network management
- Support for Quality of Service (QoS)
- 10G support for high-speed connections
- VLAN support for efficient network segmentation
- Robust security through MAC-based and web-based authentication
The switch is also stackable, accommodating up to 8 units in a 1U form factor, making it perfect for space-constrained environments. Whether you're building a new network or upgrading an existing one, the HPE Aruba CX 6200F is an ideal choice.
In addition, with features like IGMP snooping, port mirroring, and flow control support, you can ensure optimal data handling and network efficiency. The built-in ARM Cortex-A72 processor and ample memory (8GB SDRAM and 16GB Flash) provide the needed performance and reliability.
This switch supports Power over Ethernet (PoE), offering a total PoE budget of 740 W, which makes it versatile for powering devices like IP phones and security cameras directly from the switch. Operating within a temperature range of 0 to 45 °C and a storage temperature from -40 to 70 °C, it adapts well to various environments.
Perfect for both small businesses and large enterprises, this switch enhances network reliability and offers extensive features for sophisticated applications. With 32768 MAC address table entries and low latency (1.46 µs at 10 Gbps), the HPE Aruba CX 6200F is tailored for performance.
In conclusion, whether you require advanced networking capabilities for VoIP applications or enhanced security for confidential data transfers, the HPE Aruba CX 6200F 48G Layer 3 Managed PoE Switch equips your network for success.
Features
Management features
- Switch type:Managed
- Switch layer:L3
- Quality of Service (QoS) support:Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity:48
- Basic switching RJ-45 Ethernet ports type:Gigabit Ethernet (10/100/1000)
- SFP+ module slots quantity:4
- Console port:RJ-45/USB Type-C
Network
- Networking standards:IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3x, IEEE 802.3z
- 10G support:Yes
- Port mirroring:Yes
- Flow control support:Yes
- Link aggregation:Yes
- Auto MDI/MDI-X:Yes
- VLAN support:Yes
Optical fiber
- Transmission distance (max):10 km
Data transmission
- Switching capacity:176 Gbit/s
- Throughput:130.9 Mpps
- MAC address table:32768 entries
- Latency (1 Gbps):2.28 µs
- Latency (10 Gbps):1.46 µs
- Jumbo frames support:Yes
- Packet buffer memory:8 MB
Security
- Access Control List (ACL):Yes
- IGMP snooping:Yes
- Authentication:MAC-based authentication, Web-based authentication
- Authentication type:RADIUS, TACACS+
Multicast features
- Multicast support:Yes
Design
- Rack mounting:Yes
- Stackable:Yes
- Form factor:1U
Performance
- Physical stacking (units):8
- Built-in processor:Yes
- Processor model:ARM Cortex-A72
- Processor frequency:1800 MHz
- Memory type:SDRAM / Flash
- Internal memory:8192 MB
- Flash memory:16384 MB
Power
- Power source:AC
- Power supply included:Yes
- AC input voltage:100 - 240 V
- AC input frequency:50/60 Hz
- Power consumption (typical):76 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE):Yes
- Total Power over Ethernet (PoE) budget:740 W
Operational conditions
- Operating temperature (T-T):0 - 45 °C
- Storage temperature (T-T):-40 - 70 °C
- Operating relative humidity (H-H):5 - 95%
- Storage relative humidity (H-H):5 - 95%
- Operating altitude:0 - 3048 m
Weight & dimensions
- Width:442 mm
- Depth:327 mm
- Height:43.9 mm
- Weight:5.1 kg
