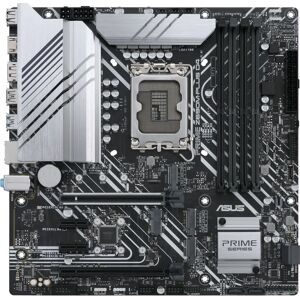

Asus Prime Z690M-Plus D4 - Mainboard for Gaming Performance
- Designed for gaming performance •
- More features
Offers updated on: 15/09/2025. Paid and non-exhaustive ads. ★ The ratings are generated from multiple sources, including data provided by the merchant and publicly available information.
Description
Introducing the Asus Prime Z690M-Plus D4, the ultimate mainboard designed for unparalleled gaming performance. This innovative motherboard exemplifies cutting-edge technology, making it an excellent choice for gaming enthusiasts looking to build a powerful setup.
Crafted for versatility, the Asus Prime Z690M-Plus D4 supports a variety of Intel processors including the Intel® Core™ i3, i5, i7, and i9 series. With its LGA 1700 socket, you can maximize your gaming experience with top-tier performance.
The motherboard allows for extensive memory capacity, accommodating up to 128 GB of DDR4-SDRAM across four DIMM slots. Dual-channel memory channels enhance data transfer speeds, providing you with the multitasking capability needed for demanding applications and gameplay.
Key features include:
- Support for memory clock speeds ranging from 2133 MHz to 5333 MHz, ensuring you have the bandwidth necessary for optimal gaming performance.
- RAID support with various levels (0, 1, 5, 10) offers the flexibility to configure your storage drives for speed or redundancy.
- Multiple USB connectors, including 4 USB 3.2 Gen 1 and 1 USB Type-C, ensure you stay connected to all your peripherals.
- Single HDMI 2.1 and DisplayPort 1.4 outputs allow for stunning graphics with resolutions up to 4K.
Designed thoughtfully, the Asus Prime Z690M-Plus D4 includes essential connectors such as a 24-pin ATX Power connector, ensuring stable power supply. In addition, the motherboard is built with a micro ATX form factor, enabling seamless fitting into various PC cases.
Whether you're a casual gamer or a competitive player, this motherboard delivers performance where it counts. Utilize one of its three M.2 slots for lightning-fast SSD storage, and enhance your audio experience with 7.1 channel output.
Embark on your gaming journey with the Asus Prime Z690M-Plus D4 which not only meets but exceeds your performance expectations. It is compatible with Windows 10 and 11, making it a flexible choice for any modern gaming rig.
In conclusion, if you’re looking to elevate your gaming setup with a reliable and high-performance motherboard, the Asus Prime Z690M-Plus D4 is undoubtedly worth considering. Get ready to conquer your digital battles!
Features
Processor
- Processor manufacturer:Intel
- Processor socket:LGA 1700
- Compatible processor series:Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel Pentium G
Memory
- Supported memory types:DDR4-SDRAM
- Number of memory slots:4
- Memory slots type:DIMM
- Memory channels:Dual-channel
- ECC сompatibility:Non-ECC
- Supported memory clock speeds:2133,2400,2666,2800,2933,3000,3200,3333,3400,3466,3600,3733,3866,4000,4133,4266,4400,4600,4800,5000,5133,5333 MHz
- Maximum internal memory:128 GB
- Unbuffered memory:Yes
Storage controllers
- Supported storage drive types:HDD & SSD
- Supported storage drive interfaces:M.2, SATA
- RAID support:Yes
- RAID levels:0, 1, 5, 10
Graphics
- Parallel processing technology support:Not supported
Internal I/O
- USB 2.0 connectors:2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors:1
- USB 3.2 Gen 2 (3.1 Gen 2) connectors:1
- Number of SATA III connectors:4
- Front panel audio connector:Yes
- ATX Power connector (24-pin):Yes
- Power fan connector:Yes
- CPU fan connector:Yes
- Number of chassis fan connectors:3
- Peripheral (Molex) power connectors (4-pin):1
- EPS power connector (8-pin):Yes
- Number of COM connectors:1
- TPM connector:Yes
- Thunderbolt headers:1
- 12V power connector:Yes
- RGB LED pin header:Yes
Rear panel I/O ports
- USB 2.0 ports quantity:2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:4
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity:1
- USB 3.2 Gen 2x2 Type-C ports quantity:1
- Ethernet LAN (RJ-45) ports:1
- HDMI ports quantity:1
- HDMI version:2.1
- DisplayPorts quantity:1
- DisplayPort version:1.4
- Headphone outputs:1
- Microphone in:Yes
- S/PDIF out port:Yes
Network
- Ethernet LAN:Yes
- Ethernet interface type:Gigabit Ethernet
- Wi-Fi:No
- Bluetooth:No
Features
- Motherboard chipset:Intel Z690
- Audio output channels:7.1 channels
- Component for:PC
- Motherboard form factor:micro ATX
- Motherboard chipset family:Intel
- Windows operating systems supported:Windows 10, Windows 11
Expansion slots
- PCI Express x1 (Gen 3.x) slots:2
- PCI Express x16 (Gen 3.x) slots:1
- Number of M.2 (M) slots:3
BIOS
- BIOS type:UEFI AMI
- BIOS memory size:192 Mbit
Logistics data
- Harmonized System (HS) code:84733020
Weight & dimensions
- Width:244 mm
- Depth:244 mm
- Height:68 mm
Packaging content
- Cables included:SATA
- Drivers included:Yes
Other features
- Weight:825 g
