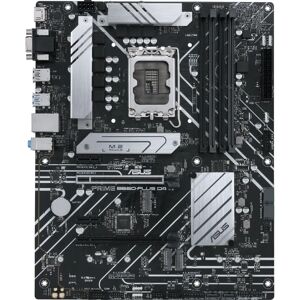

ASUS Prime B660-PLUS D4 Motherboard - Intel B660, LGA 1700, ATX
Our shoppers love
£110.91 from Amazon.co.uk
- LGA 1700 socket compatibility •
- Supports 12th Gen Intel processors •
- PCIe 4.0 slots for fast data transfer •
- Multiple M.2 slots for SSD storage •
- More features
Asus B660-PLUS D4 Intel® LGA 1700 socket
Offers updated on: 14/09/2025. Paid and non-exhaustive ads. ★ The ratings are generated from multiple sources, including data provided by the merchant and publicly available information.
Description
Introducing the ASUS Prime B660-PLUS D4 Motherboard, featuring cutting-edge technology and designed for performance, this motherboard is your ultimate solution for building a modern PC. With support for the latest Intel processors, it promises to elevate your computing experience.
This motherboard is engineered for serious gamers and professionals alike, hosting the Intel B660 chipset and designed with the LGA 1700 socket, making it compatible with a wide range of Intel processors including the Celeron, Core i3, i5, i7, i9, and Pentium Gold series. The ASUS Prime B660-PLUS D4 supports memory types up to DDR4-SDRAM with a maximum internal storage of 128 GB, allowing for seamless multitasking and efficient workflow.
Key features include:
- Processor Socket: LGA 1700
- Memory Slots: 4 DIMM slots with support for dual-channel memory
- Memory Speeds: Overclocking capability up to 5000 MHz
- Expanded Storage: 7 storage drives supported with RAID compatibility
- USB Connectivity: Multiple ports including USB 3.2 Gen 1 and Gen 2 for rapid data transfer
- Audio Excellence: 7.1 channel audio output for an immersive sound experience
Whether you’re assembling a gaming rig or a work station, the versatility of the ASUS Prime B660-PLUS D4 caters to various use cases. Install multiple HDDs and SSDs for enhanced storage management, and enjoy smooth system performance with its efficient thermal design.
In addition, the motherboard features an HDMI 2.1 port and a DisplayPort 1.4 connection, enabling high-definition visuals for gaming and content creation. The presence of various fan connectors ensures optimal cooling during demanding tasks.
What sets this motherboard apart is its robust design, ensuring durability and reliability for long-term use. With comprehensive BIOS settings for customization and performance tuning, the ASUS Prime B660-PLUS D4 empowers you to push your system to its limits.
Invest in the ASUS Prime B660-PLUS D4 Motherboard, and experience next-level performance and connectivity for all your computing needs.
Features
Processor
- Processor manufacturer:Intel
- Processor socket:LGA 1700
- Compatible processor series:Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
- Supported processor sockets:LGA 1700
Memory
- Supported memory types:DDR4-SDRAM
- Number of memory slots:4
- Memory slots type:DIMM
- Memory channels:Dual-channel
- ECC сompatibility:Non-ECC
- Supported memory clock speeds:2133,2400,2666,2800,2933,3000,3333,3400,3466,3600,3733,3866,4000,4266,4400,4600,4800,5000,5066 MHz
- Maximum internal memory:128 GB
- Unbuffered memory:Yes
Storage controllers
- Supported storage drive types:HDD & SSD
- Supported storage drive interfaces:M.2, PCI Express 4.0, SATA III
- Number of HDDs supported:4
- Number of storage drives supported:7
- RAID support:Yes
- RAID levels:0, 1, 5, 10
Internal I/O
- USB 2.0 connectors:2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors:2
- Number of SATA III connectors:4
- S/PDIF out connector:Yes
- Front panel audio connector:Yes
- Front panel connector:Yes
- ATX Power connector (24-pin):Yes
- CPU fan connector:Yes
- Number of chassis fan connectors:3
- Chassis intrusion connector:Yes
- EPS power connector (8-pin):Yes
- Number of COM connectors:1
- TPM connector:Yes
- Thunderbolt headers:1
- RGB LED pin header:Yes
Rear panel I/O ports
- USB 2.0 ports quantity:2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:1
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity:2
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity:1
- Ethernet LAN (RJ-45) ports:1
- VGA (D-Sub) ports quantity:1
- HDMI ports quantity:1
- HDMI version:2.1
- DisplayPorts quantity:1
- DisplayPort version:1.4
- Headphone outputs:3
- USB connector type:USB Type-A, USB Type-C
Network
- Ethernet LAN:Yes
- Ethernet interface type:2.5 Gigabit Ethernet
- Wi-Fi:No
Features
- Motherboard chipset:Intel B660
- Audio output channels:7.1 channels
- Component for:PC
- Motherboard form factor:ATX
- Motherboard chipset family:Intel
- Power source type:ATX
- Windows operating systems supported:Windows 10 x64, Windows 11 x64
Expansion slots
- PCI Express x1 (Gen 3.x) slots:2
- PCI Express x16 (Gen 3.x) slots:1
- PCI Express x16 (Gen 4.x) slots:1
- Number of M.2 (M) slots:3
BIOS
- BIOS type:UEFI AMI
- BIOS memory size:128 Mbit
- Clear CMOS jumper:Yes
Logistics data
- Harmonized System (HS) code:84733020
Weight & dimensions
- Width:305 mm
- Depth:244 mm
- Height:53 mm
Packaging content
- Cables included:SATA
Other features
- Weight:891 g
