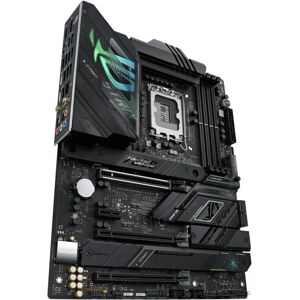

ASUS ROG STRIX Z790-F GAMING WIFI - DDR5, ATX, Intel Z790
- Supports DDR5 memory •
- Intel Z790 chipset •
- Wi-Fi 6E •
- Bluetooth connectivity •
- More features
Offers updated on: 19/12/2025. Paid and non-exhaustive ads. ★ The ratings are generated from multiple sources, including data provided by the merchant and publicly available information.
Description
Elevate your gaming experience with the ASUS ROG STRIX Z790-F GAMING WIFI, a powerhouse motherboard launched to support the latest technologies. Built for performance, this ATX motherboard is compatible with Intel's cutting-edge Z790 chipset, ensuring seamless integration with powerful Intel processors.
Engineered for gamers and PC builders alike, this motherboard supports the latest DDR5 memory types, allowing you to achieve impressive speeds of up to 7800 MHz.
Key features of the ASUS ROG STRIX Z790-F GAMING WIFI include:
- Processor Compatibility: Designed for Intel® Celeron® and Intel® Pentium® Gold CPUs with an LGA 1700 socket.
- Memory Slots: 4 DIMM slots for maximum expandability and dual-channel support, accommodating up to 192 GB of system memory.
- Storage Options: Versatile support for both HDD and SSD drives with multiple M.2 and SATA III connectors.
- RAID Configuration: Flexible RAID support for 0, 1, 5, and 10 levels to enhance data protection and performance.
- Audio & Connectivity: Features advanced 7.1 channel audio, multiple USB ports, and Ethernet at 2.5 Gigabit speeds, ensuring high-speed connections and immersive audio.
- Wi-Fi & Bluetooth: Integrated Wi-Fi 6E (802.11ax) and Bluetooth 5.3 for superior wireless performance.
- RGB Lighting: Customizable RGB LED pin headers allow for a personalized aesthetic.
The ASUS ROG STRIX Z790-F GAMING WIFI is not only powerful but also built for clarity and convenience with features like a back-to-BIOS button and clear CMOS functionality. Whether you are gaming, streaming, or designing, this motherboard ensures that your PC runs smoothly and efficiently.
Upgrade your setup and experience top-tier performance with this exceptional motherboard!
Features
Processor
- Processor manufacturer:AMD
- Processor socket:LGA 1700
- Compatible processor series:Intel® Celeron®, Intel® Pentium® Gold
- Supported processor sockets:LGA 1700
Memory
- Supported memory types:DDR5-SDRAM
- Number of memory slots:4
- Memory slots type:DIMM
- Memory channels:Dual-channel
- ECC сompatibility:Non-ECC
- Supported memory clock speeds:4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200,7400,7600,7800 MHz
- Supported memory clock speed (max):7800 MHz
- Maximum internal memory:192 GB
- Unbuffered memory:Yes
Storage controllers
- Supported storage drive types:HDD & SSD
- Supported storage drive interfaces:M.2, SATA III
- RAID support:Yes
- RAID levels:0, 1, 5, 10
Graphics
- Parallel processing technology support:Not supported
Internal I/O
- USB 2.0 connectors:2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors:1
- USB 3.2 Gen 2 (3.1 Gen 2) connectors:1
- Number of SATA III connectors:4
- Front panel audio connector:Yes
- ATX Power connector (24-pin):Yes
- CPU fan connector:Yes
- Number of chassis fan connectors:5
- EPS power connector (8-pin):Yes
- Thunderbolt headers:1
- 12V power connector:Yes
- RGB LED pin header:Yes
Rear panel I/O ports
- USB 2.0 ports quantity:2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:4
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity:2
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity:1
- USB 3.2 Gen 2x2 Type-C ports quantity:1
- Ethernet LAN (RJ-45) ports:1
- HDMI ports quantity:1
- HDMI version:2.1
- DisplayPorts quantity:1
- DisplayPort version:1.4
- Headphone outputs:1
- Line-in:Yes
- Microphone in:Yes
- S/PDIF out port:Yes
- WiFi-AP antenna jack:2
Network
- Ethernet LAN:Yes
- Ethernet interface type:2.5 Gigabit Ethernet
- Wi-Fi:Yes
- Top Wi-Fi standard:Wi-Fi 6E (802.11ax)
- Wi-Fi standards:802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
- Bluetooth:Yes
- Bluetooth version:5.3
Features
- Motherboard chipset:Intel Z790
- Audio chip:Realtek ALC4080
- Audio output channels:7.1 channels
- Component for:PC
- Motherboard form factor:ATX
- Motherboard chipset family:Intel
- Power source type:ATX
- Windows operating systems supported:Windows 10, Windows 11
Expansion slots
- PCI Express x1 (Gen 3.x) slots:1
- PCI Express x16 (Gen 4.x) slots:2
- PCI Express x16 (Gen 5.x) slots:1
- Number of M.2 (M) slots:4
BIOS
- BIOS type:UEFI AMI
- BIOS memory size:256 Mbit
- Clear CMOS button:Yes
Packaging data
- Package width:368 mm
- Package depth:293 mm
- Package height:290 mm
- Package weight:2.25 kg
Weight & dimensions
- Width:305 mm
- Depth:244 mm
Packaging content
- Cables included:SATA
- User guide:Yes
- Drivers included:Yes
Other features
- Back-to-BIOS button:Yes
