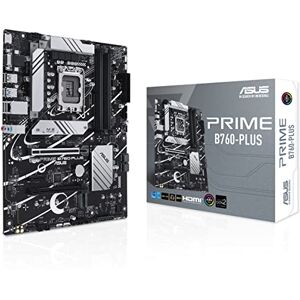

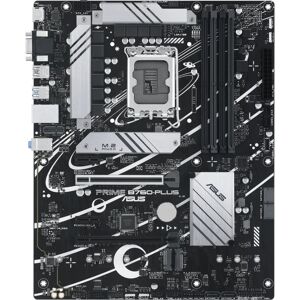

ASUS PRIME B760-PLUS Intel B760 LGA 1700 ATX - Motherboard

Processor

• Processor manufacturer:Intel
• Processor socket:LGA 1700
• Compatible processor series:Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
• Maximum number of SMP processors:1
• Supported processor sockets:LGA 1700

Memory

• Supported memory types:DDR5-SDRAM
• Number of memory slots:4
• Memory slots type:DIMM
• Memory channels:Dual-channel
• ECC сompatibility:Non-ECC
• Supported memory clock speeds:4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200 MHz
• Maximum internal memory:192 GB
• Unbuffered memory:Yes

Storage controllers

• Supported storage drive types:HDD & SSD
• Supported storage drive interfaces:M.2, SATA III
• Number of HDDs supported:4
• Number of storage drives supported:7
• RAID support:Yes
• RAID levels:0, 1, 5, 10

Graphics

• Parallel processing technology support:Not supported

Internal I/O

• USB 2.0 connectors:2
• USB 3.2 Gen 1 (3.1 Gen 1) connectors:2
• Number of SATA III connectors:4
• S/PDIF out connector:Yes
• Front panel audio connector:Yes
• Front panel connector:Yes
• ATX Power connector (24-pin):Yes
• CPU fan connector:Yes
• Number of chassis fan connectors:3
• Peripheral (Molex) power connectors (4-pin):1
• EPS power connector (8-pin):Yes
• Number of COM connectors:1
• TPM connector:Yes
• Thunderbolt headers:1
• 12V power connector:Yes
• RGB LED pin header:Yes

Rear panel I/O ports

• USB 2.0 ports quantity:2
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:1
• USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity:2
• USB 3.2 Gen 2x2 Type-C ports quantity:1
• Ethernet LAN (RJ-45) ports:1
• VGA (D-Sub) ports quantity:1
• HDMI ports quantity:1
• HDMI version:2.1
• DisplayPorts quantity:1
• DisplayPort version:1.4
• Headphone outputs:1
• Line-in:Yes

Network

• Ethernet LAN:Yes
• Ethernet interface type:2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
• Wi-Fi:No
