Description

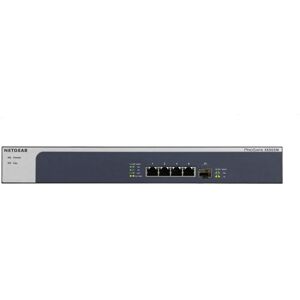

Introducing the NETGEAR XS505M Unmanaged Ethernet Switch, a formidable addition to your networking arsenal, designed to deliver robust connectivity with ease. Released for those who seek reliability and performance, this switch is perfect for high-demand environments.
With four 10G RJ-45 Ethernet ports, you can effortlessly connect multiple devices, ensuring optimal data transfer rates for heavy bandwidth usages like video streaming and online gaming. The 1 SFP+ module slot offers additional versatility, catering to various network configurations.
Quality of Service (QoS) support allows for effective prioritization of bandwidth-sensitive applications, making it ideal for offices and homes where uninterrupted service is crucial.
- Speed Options: 10G support for rapid data transmission.
- Flow Control: Yes, enhances data integrity during high traffic.
- Switching Capacity: Up to 100 Gbit/s, accommodating multiple devices simultaneously.
- MAC Address Table: 2000 entries for efficient management of connected devices.
- Jumbo Frames Support: Up to 9000 bytes to improve network efficiency.
This switch thrives in varying conditions. It operates comfortably from 0 to 50 °C, making it suitable for various environments, and offers a rugged design that can be rack-mounted for convenient installation.
Safety is a priority, and the NETGEAR XS505M complies with multiple international certifications, ensuring protection and reliability in your networking setup.
Whether you are enhancing a home office setup or managing a complex business network, the NETGEAR XS505M stands ready to optimize your connectivity options!
Features
Management features
- Switch type:Unmanaged
- Quality of Service (QoS) support:Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity:4
- Basic switching RJ-45 Ethernet ports type:10G Ethernet (100/1000/10000)
- SFP+ module slots quantity:1
- Power connector:DC-in jack
Network
- Networking standards:IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3aq, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
- 10G support:Yes
- Full duplex:Yes
- Flow control support:Yes
Data transmission
- Switching capacity:100 Gbit/s
- MAC address table:2000 entries
- Jumbo frames support:Yes
- Jumbo frames:9000
- Packet buffer memory:128 MB
Design
- Rack mounting:Yes
- Product colour:Grey, Silver
- LED indicators:Yes
- Safety:CE: CB 60950-1, LVD 60950-1, AUS/NZ: AS/NZS 60950-1, USA: UL 60950-1, SNE VA, BSMI
Performance
- Mean time between failures (MTBF):1093237 h
Power
- Power source:AC
- AC input voltage:100 - 240 V
- AC input frequency:50 - 60 Hz
- Input current:1.5 A
- Power consumption (typical):12.25 W
- Power consumption (max):22.5 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE):No
Operational conditions
- Operating temperature (T-T):0 - 50 °C
- Storage temperature (T-T):-20 - 70 °C
- Operating relative humidity (H-H):0 - 95%
- Storage relative humidity (H-H):0 - 95%
- Operating altitude:0 - 3000 m
- Heat dissipation:85.3 BTU/h
Weight & dimensions
- Width:328 mm
- Depth:169 mm
- Height:43.2 mm
- Weight:1.38 kg
Certificates
- Certification:47 CFR FCC, ICES-003:2016 Issue 6, ANSI C63.4:2014, EN 55032:2012+AC2013, EN 55024:2010, EN 61000-3-2:2014, EN 6100-3-3:2013, AS/NZS CISPR 32:2015, VCCI V-3/2015.04, V-4/2012.4, CNS 13438
Logistics data
- Harmonized System (HS) code:85176990
