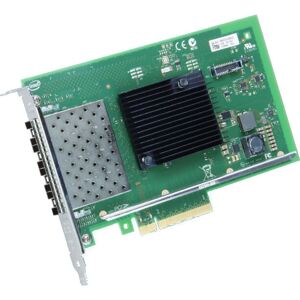

Intel X710-DA4FH 10GbE Network Card - Fiber - PCIe 3.0
- 10GbE Ethernet •
- 4 ports •
- Fiber connection •
- PCIe 3.0 interface •
- More features
Offers updated on: 19/12/2025. Paid and non-exhaustive ads. ★ The ratings are generated from multiple sources, including data provided by the merchant and publicly available information.
Description
Introducing the Intel X710-DA4FH 10GbE Network Card, launched in Q4 2014, a powerful solution designed for high-performance networking needs. This advanced network interface card (NIC) is tailored for server environments that demand speed, reliability, and cutting-edge technology.
Equipped with four Ethernet LAN RJ-45 ports and four fiber ports, this device ensures optimal connectivity through a robust PCIe 3.0 host interface. The use of the SFP+ fiber optic connector enhances data transfer rates, achieving a maximum of 10,000 Mbit/s. This makes it perfect for applications in Artificial Intelligence and High-Performance Computing.
Key features include:
- Data Transfer Speed: 10 Gbps, ideal for data-intensive tasks.
- Networking Standards: Supports IEEE 802.1as, 802.1p, 802.1Q, and more for versatile application.
- Flow Control Support: Yes, ensuring smooth data streaming.
- Management Protocols: PXE, SNMP, and RMON for effective network management.
- Maximum Operating Distance: 10 meters, suitable for most server closets.
This NIC is perfect for modern data centers where high-speed connectivity is crucial. Whether you’re setting up virtualization, enhancing data throughput, or optimizing server communications, the Intel X710-DA4FH network card is a reliable choice.
Also noteworthy are its power-efficient design, consuming only 6.9 W, and its wide compatibility with Linux and Windows Server operating systems. With temperature tolerances ranging from 0-55°C during operation and -40-70°C in storage, it’s built to endure harsh environments.
For businesses looking to upgrade their networking capabilities, this device enables VLAN tagging with support for up to 4096 VLANs, making it easier to manage network segmentation and resources.
If you’re in the market for a networking solution that combines speed, efficiency, and adaptability, consider the Intel X710-DA4FH. Its intelligent offloads and virtualization technology provide additional efficiency, meeting high demands seamlessly.
With its versatile form factor and impressive feature set, the Intel X710-DA4FH is not just a network card but a vital element of your IT infrastructure. Explore more technical details and suitability at Intel's Product Brief.
Features
Ports & interfaces
- Connectivity technology:Wired
- Host interface:PCI Express
- Interface:Fiber
- Ethernet LAN (RJ-45) ports:4
- Fiber ports quantity:4
- Fiber optic connector:SFP+
- PCI version:3.0
- PCI Card form factor:Full-height
Network
- Maximum data transfer rate:10000 Mbit/s
- Networking standards:IEEE 802.1as, IEEE 802.1p, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ad
- Ethernet LAN:Yes
- Ethernet LAN data rates:10,1000 Mbit/s
- Fiber ethernet cabling technology:10GBASE-LR, 10GBASE-SR
- Supported network protocols:TCP, UDP, IP
- VLAN tagging:Yes
- Maximum operating distance:10 m
- LAN controller:Intel® XL710-BM1
Design
- Product colour:Black, Green
- Internal:Yes
- Chipset:XL710-AM1
- LED indicators:Yes
- Certification:FCC B, UL, CE, VCCI, BSMI, CTICK, KCC
Power
- Power consumption (typical):6.9 W
System requirements
- Compatible operating systems:https://www.intel.com/content/www/us/en/support/articles/000025890/network-and-i-o/ethernet-products.html
- Linux operating systems supported:RedHat EL Linux 6.0
- Other operating systems supported:FreeBSD
- Server operating systems supported:Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2
Operational conditions
- Operating temperature (T-T):0 - 55 °C
- Storage temperature (T-T):-40 - 70 °C
- Storage relative humidity (H-H):35 - 90%
Weight & dimensions
- Width:111 mm
- Depth:167.1 mm
Logistics data
- Harmonized System (HS) code:85176990
Other features
- Cable type:SFP+ Direct Attached Twin Axial Cabling up to 10m
- Market segment:Server
- Target market:Artificial Intelligence, High Performance Computing
- Flow control support:Yes
- Management protocols:PXE, SNMP, RMON
- Number of VLANs:4096
- Intel® Virtualization Technology (Intel® VT):VT-c
- Intel Trusted Execution Technology:No
- Embedded options available:No
- Intel Virtual Machine Device Queues (VMDq):Yes
- PCI-SIG* SR-IOV Capable:Yes
- On-chip QoS and Traffic Management:Yes
- Intel Flexible Port Partitioning:Yes
- Storage-over-ethernet:Yes
- Speed & slot width:8.0 GT/s, x8 Lane
- Message signal interrupt:No
- Low halogen options available:No
- Intelligent Offloads:Yes
- iWARP/RDMA:No
- Fiber Channel over Ethernet:Yes
- Intel Ethernet Power Management:Yes
- Intel Data Direct I/O Technology:Yes
- Intel Virtualization Technology for Connectivity (VT-c):Yes
- Interface type:PCIe v3.0 (8.0 GT/s)
- Conflict-Free:Yes
- Product type:Network Interface Card
- Born on date:Q4'14
- Number of QPI links:Quad
- Processor family:700 Network Adapters (up to 40GbE)-700 Network Adapters (up to 40GbE)
- Ethernet adapter ARK ID:83965
- Network interface card cable medium:Copper
- Export Control Classification Number (ECCN):5A991
- Commodity Classification Automated Tracking System (CCATS):NA
- Controller type:Intel® Ethernet Controller X710
- Storage Over Ethernet:iSCSI NFS
- Launch date:Q4'14
- Network interface card type:Server
- Product brief URL:https://www.intel.com/content/www/us/en/ethernet-products/converged-network-adapters/ethernet-x710-brief.html
- Product name:Intel Ethernet Converged Network Adapter X710-DA4
- Status:Launched
- Last change:64826826
- Cabling type:SFP+ Direct Attached Twin Axial Cabling up to 10m
- Bracket height:Full-Height (FH)
- Product family:Intel 10 Gigabit server adapter
- Product series:700 Series Network Adapters (up to 40GbE)
- Product codename:Fortville
