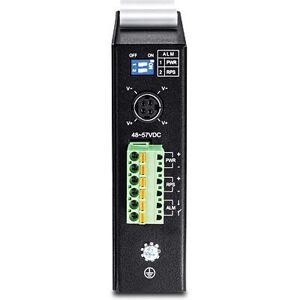

Trendnet TI-PG541i Managed Gigabit Ethernet PoE Switch - Black
- 6-Port Hardened Industrial Gigabit PoE+ Switch •
- 120W PoE Budget •
- DIN-Rail Mounting •
- More features
Offers updated on: 05/11/2025. Paid and non-exhaustive ads. ★ The ratings are generated from multiple sources, including data provided by the merchant and publicly available information.
Description
Introducing the Trendnet TI-PG541i Managed Gigabit Ethernet PoE Switch, designed to elevate your networking experience since its release. This exceptional Ethernet switch combines advanced features and robust performance to meet the demands of modern businesses.
The TI-PG541i is a managed switch that operates at Layer 2+ and supports Quality of Service (QoS), ensuring priority for your critical applications. With web-based management, configuring your network has never been easier or more intuitive.
Enhance your network's security with features like ARP inspection and a comprehensive system event log that helps you monitor activities in real-time. The switch complies with industry-standard MIB protocols like RFC 1213, providing you with versatile management options.
This model boasts five Gigabit Ethernet RJ-45 ports, ensuring high-speed connectivity for all your devices. An additional SFP module slot allows expansion for future needs.
- Switching Capacity: 12 Gbit/s
- Throughput: 8.93 Mpps
- MAC Address Table: Supports up to 16,000 entries
- Jumbo Frames: Up to 10,000 bytes supported
Whether you need to create VLANs for different departments or implement port mirroring for traffic monitoring, the Trendnet TI-PG541i has you covered. Its Access Control List (ACL) feature offers granular control over network access.
Ideal for businesses requiring reliable performance, this switch also provides DHCP server capabilities and supports multicast traffic efficiently, making it perfect for IP surveillance and VoIP applications.
Installation is simple, thanks to its DIN rail mounting option, and the switch is built to withstand challenging environments with an IP30 protection rating.
With power efficiency in mind, it supports Power over Ethernet (PoE) on four ports, delivering up to 30W per port, which is essential for powering devices like IP cameras and wireless access points.
Experience peace of mind with its robust mean time between failures (MTBF) of over 435,905 hours, ensuring long-lasting operational reliability.
In conclusion, the Trendnet TI-PG541i Managed Gigabit Ethernet PoE Switch delivers unparalleled performance, security, and manageability for your network needs. Perfect for medium to large businesses, it simplifies your networking tasks while delivering exceptional value.
Features
Management features
- Switch type:Managed
- Switch layer:L2+
- Quality of Service (QoS) support:Yes
- Web-based management:Yes
- ARP inspection:Yes
- System event log:Yes
- MIB support:RFC 1213, RFC 1493, RFC 1643, RFC 1757
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity:5
- Basic switching RJ-45 Ethernet ports type:Gigabit Ethernet (10/100/1000)
- SFP module slots quantity:1
Network
- Networking standards:IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
- 10G support:No
- Port mirroring:Yes
- Full duplex:Yes
- Link aggregation:Yes
- Broadcast storm control:Yes
- MAC address auto-learning supported:Yes
- VLAN support:Yes
- Virtual LAN features:Tagged VLAN, Protocol-based VLAN
- Number of VLANs:256
Data transmission
- Switching capacity:12 Gbit/s
- Throughput:8.93 Mpps
- MAC address table:16000 entries
- Jumbo frames support:Yes
- Jumbo frames:10000
- Packet buffer memory:128 MB
Security
- DHCP features:DHCP server
- Access Control List (ACL):Yes
- IGMP snooping:Yes
- Security algorithms:802.1x RADIUS, HTTPS, SNMP
- Loop protection:Yes
- Authentication:Port-based authentication
Multicast features
- Multicast support:Yes
- Multicast MAC address table:256 entries
Design
- Rack mounting:No
- Product colour:Black
- LED indicators:Yes
- International Protection (IP) code:IP30
- DIN rail mounting:Yes
Performance
- Mean time between failures (MTBF):435905 h
Power
- Redundant power supply (RPS) support:Yes
- AC input voltage:100 - 240 V
- AC input frequency:50 - 60 Hz
- Output voltage:48 V
- Output current:5 A
- Power consumption (max):130 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE):Yes
- Power over Ethernet plus (PoE+) ports quantity:4
- Power over Ethernet (PoE) power per port:30 W
- Total Power over Ethernet (PoE) budget:120 W
Other features
- Terminal block port:Yes
Operational conditions
- Operating temperature (T-T):-40 - 70 °C
- Operating relative humidity (H-H):0 - 95%
Weight & dimensions
- Width:135 mm
- Depth:120 mm
- Height:31 mm
- Weight:528 g
Packaging content
- Quick start guide:Yes
Packaging data
- Terminal block included:Yes
- Package type:Box
- Resource CD:Yes
Logistics data
- Harmonized System (HS) code:85176990
