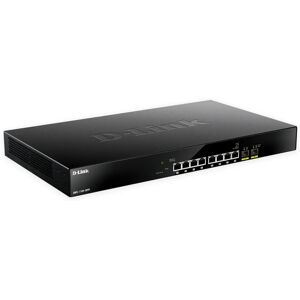

D-Link DMS-1100-10TP Managed 2.5G Ethernet Switch - Layer 2 Network Device
- 2.5 Gbps Ethernet ports for high-speed connections •
- Power over Ethernet (PoE) support for device powering •
- Layer 2 management features including STP and LACP •
- Gigabit and 10G uplink ports for scalable network •
- More features
Offers updated on: 16/09/2025. Paid and non-exhaustive ads. ★ The ratings are generated from multiple sources, including data provided by the merchant and publicly available information.
Description
Introducing the D-Link DMS-1100-10TP Managed 2.5G Ethernet Switch, your perfect solution for a robust network infrastructure. Designed as a Layer 2 network device, this sleek switch guarantees optimal performance and reliability.
With enhanced Quality of Service (QoS) support, you can prioritize your network traffic to ensure smooth communication for applications like VoIP and streaming. It features an extensive system event log for efficient monitoring and troubleshooting.
Highlighted features of the D-Link DMS-1100-10TP include:
- Switch Type: Managed
- Layer: L2
- 8 x 2.5G Ethernet ports
- Support for 10G connections
- 2 SFP+ module slots for additional flexibility
- VLAN support for enhanced network segmentation
- Port mirroring for analyzing network traffic
- Link aggregation to increase bandwidth
- Spanning tree protocol for loop prevention
- Supports jumbo frames up to 9216 bytes
Perfect for setups that require high-speed connections, the D-Link DMS-1100-10TP can cater to various applications: from small businesses needing reliable network performance to data centers requiring efficient data handling techniques.
With its robust security features such as DoS attack prevention and SNMP support, your network remains safeguarded against potential threats. Moreover, it boasts a mean time between failures (MTBF) of over 676,000 hours, ensuring longevity and stability.
Install with ease thanks to its rack-mountable form factor, only 1U in height, making it an ideal addition to any server room or network closet. Its compact design doesn’t compromise on power, supporting Power over Ethernet (PoE) with a total budget of 240 W.
Finally, with an operating temperature range of -5 to 50°C and a storage range of -40 to 70°C, the D-Link DMS-1100-10TP is built to perform, no matter the conditions. Elevate your network with this powerful, efficient switch today!
Features
Management features
- Switch type:Managed
- Switch layer:L2
- Quality of Service (QoS) support:Yes
- System event log:Yes
- MIB support:RFC768 UDP, RFC791 IP, RFC792 ICMP, RFC793 TCP, RFC826 ARP, RFC1213 MIB II, RFC768 UDP, RFC791 IP, RFC792 ICMP, RFC793 TCP, RFC826 ARP, RFC1213 MIB II
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity:8
- Basic switching RJ-45 Ethernet ports type:2.5G Ethernet (100/1000/2500)
- SFP+ module slots quantity:2
Network
- Networking standards:IEEE 802.1D, IEEE 802.1Q, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
- 10G support:Yes
- Copper ethernet cabling technology:100BASE-TX, 1000BASE-T
- Cable types supported:Cat5e
- Port mirroring:Yes
- Flow control support:Yes
- Link aggregation:Yes
- Auto MDI/MDI-X:Yes
- Spanning tree protocol:Yes
- Head-of-line (HOL) blocking:Yes
- Ethernet Ring Protection Switching (ERPS):Yes
- VLAN support:Yes
- Virtual LAN features:Voice VLAN, Tagged VLAN, Port-based VLAN
- Number of VLANs:4094
Optical fiber
- Fiber ethernet cabling technology:1000BASE-X
Data transmission
- Switching capacity:80 Gbit/s
- Throughput:59.52 Mpps
- MAC address table:16000 entries
- Store-and-forward:Yes
- Jumbo frames support:Yes
- Jumbo frames:9216
Security
- DHCP features:DHCP client
- IGMP snooping:Yes
- IGMP entries:192
- Security algorithms:SNMP, SSL/TLS
- DoS attack prevention:Yes
- Queue scheduling algorithms:Strict Priority Queue (SPQ), Deficit weighted round robin (DWRR), Weighted Round Robin (WRR)
Multicast features
- Multicast support:Yes
- MLD entries:192
Design
- Rack mounting:Yes
- Form factor:1U
- Product colour:Black
- LED indicators:Activity, Fan fail, Link, PoE, Power, Speed
- Number of fans:1 fan(s)
- Safety:cUL, CB, CE, CCC, BSMI
Performance
- Maximum cable length:100 m
- Mean time between failures (MTBF):676329 h
Power
- AC input voltage:100 - 240 V
- Power consumption (max):293.4 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE):Yes
- Power over Ethernet plus (PoE+) ports quantity:8
- Total Power over Ethernet (PoE) budget:240 W
Operational conditions
- Operating temperature (T-T):-5 - 50 °C
- Storage temperature (T-T):-40 - 70 °C
- Operating relative humidity (H-H):0 - 95%
- Storage relative humidity (H-H):0 - 95%
Weight & dimensions
- Width:440 mm
- Depth:250 mm
- Height:44 mm
- Weight:3.43 kg
Certificates
- Certification:CE, FCC, C-Tick, VCCI, BSMI, CCC
Logistics data
- Harmonized System (HS) code:85176990
