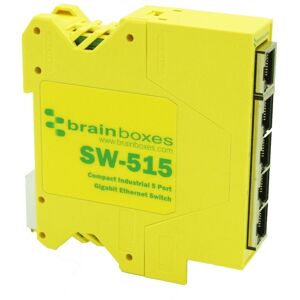

Brainboxes SW-515 Industrial 5 Port Gigabit Ethernet Switch - DIN Rail
- Unmanaged Gigabit Ethernet switch •
- 5 ports RJ45, 1000Mbit/s •
- DIN rail mounting •
- Industrial temperature range -40°C to +80°C •
- More features
Offers updated on: 19/12/2025. Paid and non-exhaustive ads. ★ The ratings are generated from multiple sources, including data provided by the merchant and publicly available information.
Description
Introducing the Brainboxes SW-515 Industrial 5 Port Gigabit Ethernet Switch, a premier solution designed for seamless connectivity in industrial environments.
This unmanaged switch features 5 Gigabit Ethernet ports that ensure high-speed data transfer at 10/100/1000 Mbps, making it an excellent choice for demanding network applications.
Equipped with auto MDI/MDI-X capability, the Brainboxes SW-515 easily adapts to connections without the need for crossover cables, simplifying the installation process.
Not only does it support auto-sensing for optimal network performance, but its DIN rail mounting feature provides a robust solution for space-saving in equipment cabinets.
The vibrant yellow housing, made of durable polyamide, is designed to withstand harsh industrial conditions, ensuring longevity and reliability.
- LED indicators: Keep track of activity, link status, and speed with informative LEDs.
- IP20 rated: It's protected against solid objects larger than 12mm, making it suitable for a variety of environments.
- Wide operating temperature: This switch functions optimally between -40 to 80 °C, perfect for extreme environments.
- Power specifications: Operating on a DC voltage of 5 - 30 V with a max power consumption of only 3.6 W, it efficiently manages energy usage.
- Weight: At just 112 g and with dimensions of 99 mm x 94 mm x 23 mm, this switch is compact yet powerful.
Its reverse polarity protection feature ensures that your network remains safe from power inconsistencies, making it a reliable choice for mission-critical applications.
This switch is perfect for installations in manufacturing plants, transportation hubs, or other settings where reliable network connectivity is essential.
With a certification from Microsoft Certified Gold Partner and compliance with standards like WEEE and RoHS, this product meets high-quality benchmarks.
The Brainboxes SW-515 also comes with a quick start guide, ensuring a hassle-free setup.
In summary, if you're looking for a robust, efficient, and versatile Ethernet switch, the Brainboxes SW-515 is the ideal choice for your industrial networking needs.
Features
Management features
- Switch type:Unmanaged
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity:5
- Basic switching RJ-45 Ethernet ports type:Gigabit Ethernet (10/100/1000)
Network
- Auto MDI/MDI-X:Yes
- Auto-sensing:Yes
Design
- Rack mounting:Yes
- Product colour:Yellow
- Housing material:Polyamide
- LED indicators:Activity, Link, Speed
- International Protection (IP) code:IP20
- DIN rail mounting:Yes
Power
- DC input voltage:5 - 30 V
- Power consumption (max):3.6 W
- Power protection features:Reverse polarity
Power over Ethernet (PoE)
- Power over Ethernet (PoE):No
Operational conditions
- Operating temperature (T-T):-40 - 80 °C
- Storage temperature (T-T):-40 - 85 °C
- Operating relative humidity (H-H):5 - 95%
Weight & dimensions
- Width:99 mm
- Depth:94 mm
- Height:23 mm
- Weight:112 g
Packaging content
- Quick start guide:Yes
Packaging data
- Package width:160 mm
- Package depth:135 mm
- Package height:49 mm
- Package weight:199 g
Certificates
- Certification:Microsoft Certified Gold Partner, WEEE, RoHS, AEO (C-TPAT), CE, METL Complies with UL 60950-1
