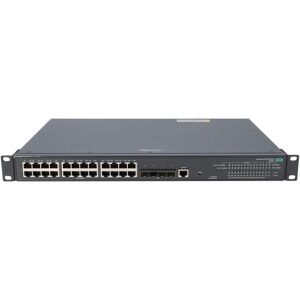

HPE FlexNetwork 5130 24G PoE+ 4SFP+ - Network Switch
- Gigabit Ethernet ports •
- PoE+ support •
- Layer 3 routing •
- Energy Efficient Ethernet •
- More features
Offers updated on: 06/11/2025. Paid and non-exhaustive ads. ★ The ratings are generated from multiple sources, including data provided by the merchant and publicly available information.
Description
Introducing the HPE FlexNetwork 5130 24G PoE+ 4SFP+ Network Switch – a powerhouse in networking that elevates your network's performance and efficiency. This advanced managed switch, released on a yet unspecified date, is designed to support today's demanding networking requirements.
The HPE FlexNetwork 5130 is not just any switch; it's a Layer 3 device that provides enhanced routing capabilities alongside its robust switching functionalities. Key features include:
- 24 Gigabit Ethernet RJ-45 ports to ensure high-speed connectivity.
- 4 SFP+ slots enabling fiber connectivity for increased bandwidth.
- Quality of Service (QoS) support for optimized traffic management.
- Web-based management for easy configuration and monitoring.
- Link aggregation offers flexibility and redundancy.
This switch boasts a switching capacity of 128 Gbit/s and a throughput of 96 Mpps, making it an ideal choice for businesses that demand high performance. Additionally, with full duplex capabilities, your data can flow in both directions simultaneously, increasing efficiency.
Whether you manage a small office or a large corporate environment, the HPE FlexNetwork 5130 delivers reliability and power. It includes features such as:
- IP routing and VLAN support for efficient network segmentation.
- Advanced security features, including Access Control Lists (ACL) and MAC-based authentication.
- Support for DHCP server and client functionalities.
- IGMP snooping to enhance multicast traffic handling.
- DHCP features, SSH/SSL support, and more for secure management.
Operating within a broad temperature range of -5 to 45 °C and with a comprehensive Power over Ethernet (PoE) budget of 370 W, this versatile switch is equipped to handle various environments. Its compact design, rack-mountable form factor, and stackable functionality make it suitable for diverse installations.
Finally, with a weight of just 8 kg and dimensions of 440 mm x 300 mm x 43.7 mm, the HPE FlexNetwork 5130 is designed for efficient deployment and operation in the real world. The operating relative humidity range of 10 - 90% ensures stable performance even in less-than-ideal settings. Consider the HPE FlexNetwork 5130 24G PoE+ 4SFP+ Network Switch for a future-proof networking solution that aligns with modern business needs.
Features
Management features
- Switch type:Managed
- Switch layer:L3
- Quality of Service (QoS) support:Yes
- Web-based management:Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity:24
- Basic switching RJ-45 Ethernet ports type:Gigabit Ethernet (10/100/1000)
- Installed SFP+ modules quantity:4
- Console port:RJ-45
Network
- Networking standards:IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
- 10G support:Yes
- Copper ethernet cabling technology:10BASE-T, 100BASE-TX, 1000BASE-T
- Full duplex:Yes
- IP routing:Yes
- Flow control support:Yes
- Link aggregation:Yes
- Broadcast storm control:Yes
- Auto MDI/MDI-X:Yes
- Spanning tree protocol:Yes
- Auto-sensing:Yes
- VLAN support:Yes
Data transmission
- Switching capacity:128 Gbit/s
- Throughput:96 Mpps
- MAC address table:16384 entries
- Latency (1 Gbps):5 µs
- Latency (10 Gbps):3 µs
- Jumbo frames support:Yes
- Packet buffer memory:1.5 MB
Security
- DHCP features:DHCP server, DHCP client
- Access Control List (ACL):Yes
- IGMP snooping:Yes
- SSH/SSL support:Yes
- Authentication:MAC-based authentication
Design
- Rack mounting:Yes
- Stackable:Yes
- Form factor:1U
- Product colour:Black
Performance
- Physical stacking (units):9
- Memory type:SDRAM
- Internal memory:1024 MB
- Flash memory:512 MB
Power
- AC input voltage:100 - 240 V
- AC input frequency:50 - 60 Hz
- Power consumption (typical):30 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE):Yes
- Total Power over Ethernet (PoE) budget:370 W
Operational conditions
- Operating temperature (T-T):-5 - 45 °C
- Storage temperature (T-T):-40 - 70 °C
- Operating relative humidity (H-H):10 - 90%
- Storage relative humidity (H-H):5 - 95%
Weight & dimensions
- Width:440 mm
- Depth:300 mm
- Height:43.7 mm
- Weight:8 kg
Logistics data
- Harmonized System (HS) code:85176990
