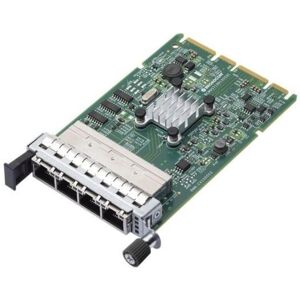

Lenovo Broadcom 5719 Network Adapter - Gigabit Ethernet - OCP
- High performance PCIe and OCP adapters •
- Available with 2 or 4 ports •
- Supported on ThinkSystem and System x servers •
- Gigabit Ethernet speed (10/100/1000 Mbps) •
- More features
Offers updated on: 04/11/2025. Paid and non-exhaustive ads. ★ The ratings are generated from multiple sources, including data provided by the merchant and publicly available information.
Description
Introducing the Lenovo Broadcom 5719 Network Adapter, designed to elevate your network connectivity with its cutting-edge Gigabit Ethernet capabilities. This innovative component, built to enhance server performance, ensures that your data transfer remains swift and reliable.
With a host interface featuring PCI Express technology, this network adapter integrates seamlessly with your server hardware. Experience the advantage of multiple Ethernet LAN ports – specifically four RJ-45 ports – which enable the connection of multiple devices, enhancing your overall network capacity.
Key features include:
- Maximum Data Transfer Rate: Enjoy lightning-fast speeds of up to 1000 Mbit/s.
- Compliance with Networking Standards: Compatible with a wide array of IEEE standards such as IEEE 802.3x and IEEE 802.3ad.
- Wake-on-LAN Ready: Allows for remote power-on capabilities, making it easier to manage your server.
- Color: A sleek combination of green and stainless steel ensures a modern look.
- Operating Temperature: Efficiently functions within a range of 10 - 35 °C.
This adapter is particularly beneficial for server environments where high-speed connectivity is crucial, such as data centers and enterprise networks. The compatibility with a variety of operating systems, including Microsoft Windows Server and Red Hat Enterprise Linux, means it can meet the demands of virtually any server configuration.
Built to withstand rigorous demands, this internal component is not only RoHS compliant but also certified with several safety standards like EN55022 and FCC Class A, which guarantees that it adheres to high quality and safety benchmarks. Prepare for a revolutionary network experience with the Lenovo Broadcom 5719 Network Adapter – your gateway to a faster, more efficient workspace.
Features
Ports & interfaces
- Connectivity technology:Wired
- Host interface:PCI Express
- Interface:Ethernet
- Ethernet LAN (RJ-45) ports:4
- PCI version:2.0
Network
- Maximum data transfer rate:1000 Mbit/s
- Networking standards:IEEE 1588, IEEE 802.1Q, IEEE 802.1as, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3x, IEEE 802.3z
- Ethernet LAN:Yes
- Ethernet interface type:Gigabit Ethernet
- Ethernet LAN data rates:10,100,1000 Mbit/s
- Wake-on-LAN ready:Yes
- LAN controller:Broadcom BCM5719
Design
- Component for:Server
- Product colour:Green, Stainless steel
- Internal:Yes
- Certification:EN55022, EN55024, EN60950 / CE, EN 61000-3-2, EN 61000-3-3, ICES-003, Issue-004, IEC 950 CB Scheme, FCC 47 CFR Part 15 Class A, UL 1950, CSA C22.2 950-95, VCCI, AS/NZSCISPR 22 / C-tick, RRL for KC, BSMI, UL 94-/V
- Compatible products:R635 (7Y98 / 7Y99), R655 (7Y00 / 7Z01)
System requirements
- Compatible operating systems:Microsoft Windows Server version 1709, Microsoft Windows Server version 1803, Red Hat Enterprise Linux 6.10, Red Hat Enterprise Linux 6.9, Red Hat Enterprise Linux 7.3, Red Hat Enterprise Linux 7.4, Red Hat Enterprise Linux 7.5, Red Hat Enterprise Linux 7.6, Red Hat Enterprise Linux 7.7, Red Hat Enterprise Linux 8.0, SUSE Linux Enterprise Server 12 SP2, SUSE Linux Enterprise Server 12 SP2 with Xen, SUSE Linux Enterprise Server 12 SP3, SUSE Linux Enterprise Server 12 SP3 with Xen, SUSE Linux Enterprise Server 12 SP4, SUSE Linux Enterprise Server 12 SP4 with Xen, SUSE Linux Enterprise Server 15, SUSE Linux Enterprise Server 15 SP1, SUSE Linux Enterprise Server 15 SP1 with Xen, SUSE Linux Enterprise Server 15 with Xen, VMware vSphere Hypervisor (ESXi) 6.0 U3, VMware vSphere Hypervisor (ESXi) 6.5, VMware vSphere Hypervisor (ESXi) 6.5 U1, VMware vSphere Hypervisor (ESXi) 6.5 U2, VMware vSphere Hypervisor (ESXi) 6.5 U3, VMware vSphere Hypervisor (ESXi) 6.7, VMware vSphere Hypervisor (ESXi) 6.7 U1, VMware vSphere Hypervisor (ESXi) 6.7 U2, VMware vSphere Hypervisor (ESXi) 6.7 U3
- Server operating systems supported:SUSE Linux Enterprise Server 12, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
Operational conditions
- Operating temperature (T-T):10 - 35 °C
- Operating relative humidity (H-H):20 - 80%
Weight & dimensions
- Width:69 mm
- Depth:132 mm
- Height:19 mm
Technical details
- Compliance certificates:RoHS
Logistics data
- Harmonized System (HS) code:85176990
Other features
- Minimum operating temperature:10 °C
- Maximum operating temperature:35 °C
- Flow control support:Yes
