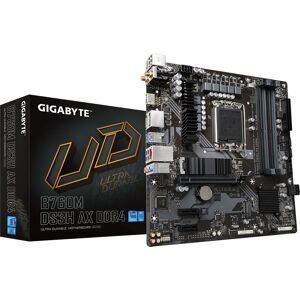

Gigabyte B760M DS3H AX DDR4 - Micro ATX Motherboard - LGA1700 - Wi-Fi 6E
Our shoppers love
£123.55 from eBay
- Supports Intel LGA 1700 socket CPUs •
- Micro ATX form factor •
- DDR4 RAM support up to 5333 MHz •
- Multiple PCI-Express slots including PCIe 4.0 •
- More features
Offers updated on: 04/11/2025. Paid and non-exhaustive ads. ★ The ratings are generated from multiple sources, including data provided by the merchant and publicly available information.
Description
Introducing the Gigabyte B760M DS3H AX DDR4 Micro ATX Motherboard, a powerhouse designed for the modern PC enthusiast. Released with cutting-edge technology, this motherboard is equipped with a multitude of features that make it an ideal foundation for your high-performance builds.
Powered by Intel and featuring the LGA 1700 socket, this motherboard supports a wide range of Intel processors, including Intel® Celeron®, Core™ i3, Core™ i5, Core™ i7, Core™ i9, and Pentium® Gold. With a maximum internal memory capacity of 128 GB and support for DDR4-SDRAM, optimizing your memory performance has never been easier.
Key Features:
- Processor Support: Compatible with Intel's latest processor series, ensuring you have the latest technology at your fingertips.
- Memory Slots: Four DIMM slots supporting speeds up to 5333 MHz for swift multitasking.
- Storage Solutions: Accommodates up to six drives including HDD and SSD through M.2 and SATA III interfaces.
- RAID Support: Configurable in RAID 0, 1, 5, or 10, offering enhanced data performance and redundancy.
- Enhanced Graphics: Maximum resolution support of 4096 x 2304 pixels and compatibility with DirectX 12.0 for a superior gaming experience.
This motherboard comes with robust connectivity options, including:
- USB 3.2 Gen 1 (1 Type-C and 1 Type-A),
- Four SATA connectors for flexible storage capacity,
- Wi-Fi 6E and Bluetooth 5.2 for high-speed wireless connectivity,
- HDMI and DisplayPort outputs to easily connect multiple monitors.
With features such as PC health monitoring (fan, temperature, voltage) and RGB LED header, your build will not only perform exceptionally but look stunning too. The Gigabyte B760M DS3H AX is perfect for gaming, content creation, and even as a reliable workstation, adapting to your needs with ease. Elevate your PC experience with this feature-packed motherboard!
Features
Processor
- Processor manufacturer:Intel
- Processor socket:LGA 1700
- Compatible processor series:Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
- Supported processor sockets:LGA 1700
- Maximum internal memory supported by processor:128 GB
Memory
- Supported memory types:DDR4-SDRAM
- Number of memory slots:4
- Memory slots type:DIMM
- Memory channels:Dual-channel
- ECC сompatibility:ECC & Non-ECC
- Supported memory clock speeds:2133,2400,2666,2933,3000,3200,3300,3333,3400,3466,3600,3666,3733,3800,3866,4000,4133,4266,4300,4400,4500,4600,4700,4800,4933,5000,5133,5333 MHz
- Supported memory clock speed (max):5333 MHz
- Maximum internal memory:128 GB
- Unbuffered memory:Yes
Storage controllers
- Supported storage drive types:HDD & SSD
- Supported storage drive interfaces:M.2, SATA III
- Number of HDDs supported:4
- Number of storage drives supported:6
- RAID support:Yes
- RAID levels:0, 1, 5, 10
Graphics
- Parallel processing technology support:Not supported
- Maximum resolution:4096 x 2304 pixels
- HDCP:Yes
- DirectX version:12.0
Internal I/O
- USB 2.0 connectors:2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors:1
- Number of SATA III connectors:4
- Total number of SATA connectors:4
- S/PDIF out connector:Yes
- Front panel audio connector:Yes
- Front panel connector:Yes
- ATX Power connector (24-pin):Yes
- CPU fan connector:Yes
- EPS power connector (8-pin):Yes
- TPM connector:Yes
- 12V power connector:Yes
- RGB LED pin header:Yes
Rear panel I/O ports
- USB 2.0 ports quantity:2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:3
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity:1
- Ethernet LAN (RJ-45) ports:1
- PS/2 ports quantity:1
- HDMI ports quantity:1
- HDMI version:2.0
- DisplayPorts quantity:2
- DisplayPort version:1.2
- Headphone outputs:3
- Microphone in:Yes
- WiFi-AP antenna jack:2
- USB connector type:USB Type-A, USB Type-C
Network
- Ethernet LAN:Yes
- Ethernet interface type:2.5 Gigabit Ethernet
- Wi-Fi:Yes
- Top Wi-Fi standard:Wi-Fi 6E (802.11ax)
- Wi-Fi standards:802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
- WLAN controller model:RZ608
- Bluetooth:Yes
- Bluetooth version:5.2
Features
- Motherboard chipset:Intel B760 Express
- Audio output channels:7.1 channels
- Product colour:Brown
- PC health monitoring:Fan, Temperature, Voltage, Water cooling
- Component for:PC
- Motherboard form factor:micro ATX
- Motherboard chipset family:Intel
- Windows operating systems supported:Windows 10 x64, Windows 11 x64
Expansion slots
- PCI Express x1 slots:2
- PCI Express x16 slots:1
- Number of M.2 (M) slots:2
BIOS
- BIOS type:UEFI AMI
- BIOS memory size:128 Mbit
- ACPI version:5.0
- Clear CMOS jumper:Yes
- Desktop Management Interface (DMI) version:2.7
- System Management BIOS (SMBIOS) version:2.7
Logistics data
- Country of origin:China
- Products per shipping (inner) case:1 pc(s)
Battery
- Battery weight:3 g
- Lithium weight per battery:0.07 g
- Number of battery cells:1
- Battery technology:Lithium-Manganese Dioxide (LiMnO2)
- Battery type:CR2032
Packaging data
- Package width:265 mm
- Package depth:265 mm
- Package height:54 mm
- Package weight:1.1 kg
Weight & dimensions
- Width:244 mm
- Depth:244 mm
- Height:35 mm
Packaging content
- Cables included:SATA
- Batteries included:Yes
- Bundled software:Norton Internet Security
Technical details
- Warranty period:3 year(s)
