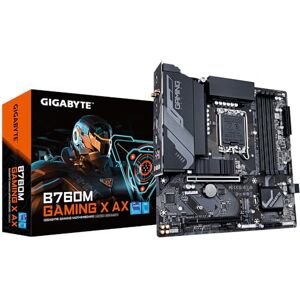

Gigabyte B760M Gaming X AX Motherboard - Micro ATX, DDR5, PCIe 4.0
- Supports Intel LGA 1700 socket •
- Micro ATX form factor •
- DDR5 memory support •
- 4 memory slots •
- More features
Offers updated on: 14/09/2025. Paid and non-exhaustive ads. ★ The ratings are generated from multiple sources, including data provided by the merchant and publicly available information.
Description
Introducing the Gigabyte B760M Gaming X AX Motherboard, a powerhouse of micro ATX performance designed for gaming enthusiasts and high-end PC builders. This board, supporting Intel processors with its LGA 1700 socket, lets you unleash impressive performance with a maximum internal memory of 192 GB utilizing DDR5 RAM.
Equipped with four DIMM slots, this motherboard facilitates dual-channel memory for superior memory bandwidth. It supports a vast range of memory speeds from 4000 MHz to 7600 MHz, ensuring that you can configure your system to operate at optimal levels for any task.
With robust storage capabilities, the Gigabyte B760M includes up to six storage drives and supports various interfaces like M.2 and SATA III. Plus, with RAID support for levels 0, 1, 5, and 10, you can enhance both performance and data security.
Experience stunning graphics with support for a maximum resolution of 4096 x 2304 pixels. The motherboard features HDMI 2.0 and DisplayPort 1.2 outputs, making it ideal for high-resolution gaming and multimedia.
Connectivity is king with USB 3.2 Gen 2 and USB 2.0 ports, including multiple types to fit all your peripherals. Additionally, the integrated 2.5 Gigabit Ethernet and Wi-Fi 6E ensure you have the best online gaming experience with fast and reliable connections.
This motherboard is designed with gamers in mind, featuring capabilities for RGB lighting controls, a comprehensive fan head configuration, and support for water cooling systems to maintain optimal temperatures during intense gaming sessions.
Whether you are looking to build a gaming rig that can handle the latest titles or a workstation for heavy applications, the Gigabyte B760M Gaming X AX delivers outstanding versatility and performance.
Secure your build with a 3-year warranty, ensuring peace of mind as you engage in your favorite projects. Upgrade your gaming setup with this motherboard and enjoy unmatched performance and functionality.
Here are some key features:
- Processor Support: Intel LGA 1700 socket
- Memory Capabilities: Up to 192 GB DDR5, dual-channel
- Storage Options: 6 drives with M.2 and SATA III support
- High Speed Connectivity: USB 3.2 Gen 2 and 2.5 Gigabit Ethernet
- Integrated Wi-Fi: Wi-Fi 6E for maximum speed
This motherboard isn't just about raw power; it provides the planning and design needed to optimize your gaming experience.
Features
Processor
- Processor manufacturer:Intel
- Processor socket:LGA 1700
- Compatible processor series:Intel® Celeron®, Intel® Pentium® Gold
- Maximum number of SMP processors:2
- Supported processor sockets:LGA 1700
- Maximum internal memory supported by processor:192 GB
Memory
- Supported memory types:DDR5-SDRAM
- Number of memory slots:4
- Memory slots type:DIMM
- Memory channels:Dual-channel
- ECC сompatibility:Non-ECC
- Supported memory clock speeds:4000,4800,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200,7400,7600 MHz
- Supported memory clock speed (max):7600 MHz
- Maximum internal memory:192 GB
- Supported memory module capacities:1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB, 48GB
- Unbuffered memory:Yes
Storage controllers
- Supported storage drive interfaces:M.2, SATA III
- Number of HDDs supported:4
- Number of storage drives supported:6
- RAID support:Yes
- RAID levels:0, 1, 5, 10
Graphics
- Maximum resolution:4096 x 2304 pixels
- HDCP:Yes
- DirectX version:12.0
Internal I/O
- USB 2.0 connectors:2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors:1
- USB 3.2 Gen 2 (3.1 Gen 2) connectors:1
- Number of SATA III connectors:4
- S/PDIF out connector:Yes
- Front panel audio connector:Yes
- Front panel connector:Yes
- ATX Power connector (24-pin):Yes
- CPU fan connector:Yes
- Number of chassis fan connectors:3
- EPS power connector (8-pin):Yes
- TPM connector:Yes
- Serial port headers:1
- Thunderbolt headers:2
- RGB LED pin header:Yes
Rear panel I/O ports
- USB 2.0 ports quantity:5
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:3
- Ethernet LAN (RJ-45) ports:1
- HDMI ports quantity:1
- HDMI version:2.0
- DisplayPorts quantity:1
- DisplayPort version:1.2
- Headphone outputs:1
- Line-in:Yes
- Microphone in:Yes
- WiFi-AP antenna jack:2
Network
- Ethernet LAN:Yes
- Ethernet interface type:2.5 Gigabit Ethernet
- Wi-Fi:Yes
- Top Wi-Fi standard:Wi-Fi 6E (802.11ax)
- Wi-Fi standards:802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
- WLAN controller model:Realtek RTL8852CE
- Bluetooth:Yes
- Bluetooth version:5.3
Features
- Motherboard chipset:Intel B760 Express
- Audio output channels:7.1 channels
- Product colour:Brown
- PC health monitoring:Fan, Temperature, Voltage, Water cooling
- Component for:PC
- Motherboard form factor:micro ATX
- Motherboard chipset family:Intel
- Power source type:ATX
- Windows operating systems supported:Windows 10, Windows 11
Expansion slots
- PCI Express x16 (Gen 3.x) slots:1
- PCI Express x16 (Gen 4.x) slots:1
- Number of M.2 (M) slots:2
BIOS
- BIOS type:UEFI AMI
- BIOS memory size:256 Mbit
- ACPI version:5.0
- Clear CMOS jumper:Yes
- Desktop Management Interface (DMI) version:2.7
- System Management BIOS (SMBIOS) version:2.7
Logistics data
- Country of origin:China
- Products per shipping (inner) case:1 pc(s)
Battery
- Battery weight:3 g
- Lithium weight per battery:0.07 g
- Number of battery cells:1
- Battery technology:Lithium-Manganese Dioxide (LiMnO2)
- Battery type:CR2032
Packaging data
- Package width:270 mm
- Package depth:268 mm
- Package height:68 mm
- Package weight:1.64 kg
Weight & dimensions
- Width:244 mm
- Depth:244 mm
- Height:35 mm
Packaging content
- Cables included:SATA
- Batteries included:Yes
- Bundled software:Norton® Internet Security (OEM version) LAN bandwidth management software
Technical details
- Warranty period:3 year(s)
