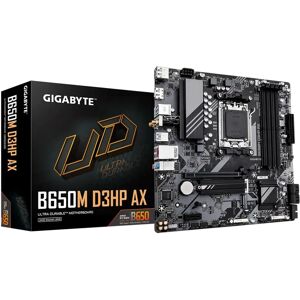

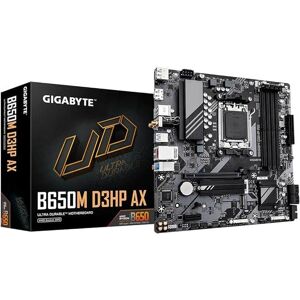

GIGABYTE B650M D3HP AX Micro ATX Motherboard - AMD B650 Socket AM5

Processor

• Processor manufacturer:AMD
• Processor socket:Socket AM5
• Compatible processor series:AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
• Supported processor sockets:Socket AM5

Memory

• Supported memory types:DDR5-SDRAM
• Number of memory slots:4
• Memory slots type:DIMM
• Memory channels:Dual-channel
• ECC сompatibility:Non-ECC
• Supported memory clock speeds:4800,5200,5600,6000,6200,6400,6600,6800,7000,7200,7600 MHz
• Supported memory clock speed (max):7600 MHz
• Maximum internal memory:256 GB
• Unbuffered memory:Yes
• Maximum internal memory per slot:64 GB

Storage controllers

• Supported storage drive types:HDD & SSD
• Supported storage drive interfaces:M.2, SATA III
• Number of HDDs supported:4
• Number of storage drives supported:6
• RAID support:Yes
• RAID levels:0, 1, 10

Graphics

• Parallel processing technology support:Not supported
• Maximum resolution:4096 x 2160 pixels
• HDCP:Yes
• DirectX version:12.0
• Discrete graphics support:Yes

Internal I/O

• USB 2.0 connectors:2
• USB 3.2 Gen 1 (3.1 Gen 1) connectors:2
• Number of SATA III connectors:4
• Front panel audio connector:Yes
• Front panel connector:Yes
• ATX Power connector (24-pin):Yes
• CPU fan connector:Yes
• Number of CPU fan connectors:1
• Number of chassis fan connectors:2
• EPS power connector (8-pin):Yes
• Number of EPS power connectors (8-pin):1
• TPM connector:Yes
• 12V power connector:Yes
• RGB LED pin header:Yes
• Number of RGB LED pin headers:3

Rear panel I/O ports

• USB 2.0 ports quantity:2
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:3
• USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity:1
• Ethernet LAN (RJ-45) ports:1
• PS/2 ports quantity:1
• HDMI ports quantity:1
• HDMI version:2.1
• DisplayPorts quantity:2
• DisplayPort version:1.4
• Headphone outputs:1
• Line-in:Yes
• Microphone in:Yes

Network

• Ethernet LAN:Yes
• Ethernet interface type:2.5 Gigabit Ethernet
• LAN controller:Realtek RTL8125
• Wi-Fi:Yes
• Top Wi-Fi standard:Wi-Fi 6E (802.11ax)
• Wi-Fi standards:802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
• WLAN controller model:Realtek RTL8852CE
• Bluetooth:Yes
• Bluetooth version:5.3

Features

• Motherboard chipset:AMD B650
• Audio chip:Realtek ALC897
• Audio output channels:7.1 channels
• Product colour:Brown
• PC health monitoring:Fan, Temperature, Voltage
• Component for:PC
• Motherboard form factor:micro ATX
• Motherboard chipset family:AMD
• Power source type:ATX
• Windows operating systems supported:Windows 10 x64, Windows 11 x64
