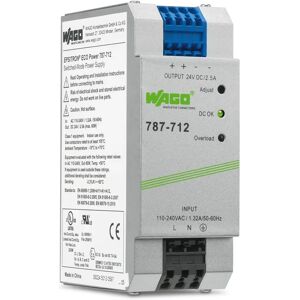

WAGO 787-712 Power Supply - 24V, 60W, Grey
- Suitable for series and parallel operation •
- Adjustable output voltage 22-28V •
- Built-in LED indicators for status •
- Compact DIN-35 rail mounting •
- More features
Offers updated on: 21/12/2025. Paid and non-exhaustive ads. ★ The ratings are generated from multiple sources, including data provided by the merchant and publicly available information.
Description
Introducing the WAGO 787-712 Power Supply, the perfect solution for your 24V power needs, designed to deliver reliable performance since its release. This 60W power supply is crafted for versatility and efficiency, making it an ideal choice for various applications.
With a wide AC input voltage range of 85 - 264V and an input frequency of 47 - 63Hz, the WAGO 787-712 is designed to operate seamlessly in different environments. Whether you're setting up a new electrical system or upgrading an existing one, this power supply offers a robust solution.
Key features include:
- Total Power: 60W
- Efficiency: 86%
- Hold Time: 20ms
- AC Input Voltage: 85 - 264V
- Protection Features: Over voltage and Short circuit
- Operating Temperature: -10°C to 70°C
- Storage Temperature: -25°C to 85°C
This power supply also includes essential power protection features, safeguarding your equipment against over voltage and short circuits. Its passive cooling system ensures a stable temperature, enhancing reliability and longevity.
The compact design, measuring 50 mm in width, 136 mm in depth, and 92 mm in height, makes it easy to integrate into various setups without taking up too much space. Weighing just 470g, the WAGO 787-712 is lightweight yet sturdy, perfect for industrial applications.
Ideal for a diverse range of scenarios—from automation systems to control cabinets—the WAGO 787-712 ensures your devices run smoothly even under demanding conditions. With a mean time between failures (MTBF) of 480,000 hours, you can trust its performance.
Certifications such as EN 60950 and ATEX conformities highlight its quality and safety, making it suitable for various professional applications. Invest in the WAGO 787-712 Power Supply today to elevate your projects with reliable and efficient power solutions!
Features
Power
- Total power:60 W
- AC input voltage:85 - 264 V
- AC input frequency:47 - 63 Hz
- Input current:0.7 - 1.2 A
- Power factor:0.5
- Power Factor Correction (PFC) type:Passive
- Hold time:20 ms
- Efficiency:86%
- Power protection features:Over voltage, Short circuit
Performance
- AWG wire size (min):12
- AWG wire size (max):28
- Mean time between failures (MTBF):480000 h
Design
- Product colour:Grey
- Cooling type:Passive
Operational conditions
- Operating temperature (T-T):-10 - 70 °C
- Storage temperature (T-T):-25 - 85 °C
Certificates
- Certification:EN 60950; EN 61204-3; cURus 60950; cULus 508; ANSI/ISA 12.12.01 (Class I Div. 2); ATEX; IEC Ex
Weight & dimensions
- Width:50 mm
- Depth:136 mm
- Height:92 mm
- Weight:470 g
Logistics data
- Country of origin:China
