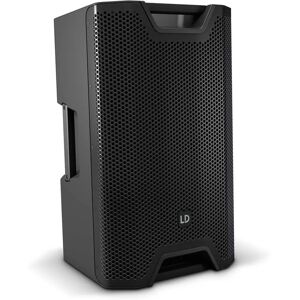

LD Systems ICOA 12 A Coaxial Active Speaker - Full-Range, 12''/1'' - PA

LD Systems ICOA 12 Active Box is an impressive full-range loudspeaker that was released to meet the demands of musicians, DJs, and entertainers alike. This remarkable speaker not only delivers outstanding sound quality at low frequencies but also showcases a versatile design that adapts to a variety of settings. With its coaxial configuration and a rotating BEM-optimized CD horn, the ICOA 12 A ensures that you experience unparalleled audio clarity and performance, making it a must-have for any audio enthusiast.

Crafted for flexibility, the LD Systems ICOA 12 boasts extensive and precisely calibrated DynX DSP presets that enhance its performance in any environment. This active 12" loudspeaker is engineered to provide exceptional bass reproduction thanks to its horn-loaded woofer, making it the ideal choice for live performances, parties, and even dance schools. Whether you're a solo artist or part of a band, this speaker will elevate your sound experience and allow DJs to perform without the need for a subwoofer.

One of the standout features of the ICOA 12 is its ability to be deployed both vertically and horizontally. When used vertically, it serves as a powerful satellite speaker, while horizontally, it excels as a suspended system or a reliable floor monitor. This adaptability is complemented by the efficient Class-D power amplifier, which delivers a maximum sound pressure level (SPL) of 126 dB and an impressive 300 W RMS performance, ensuring your audio reaches every corner of the venue.

Thanks to the DynX DSP technology integrated into the ICOA 12, users can expect perfect audio performance with maximum clarity under all conditions. The speaker comes equipped with four presets, a 3-band EQ, and a delay function, allowing for optimal adjustment tailored to the specific venue conditions. This means you can fine-tune your sound to suit different environments, ensuring the best listening experience for your audience.

• Key Features:
• A genuine all-rounder suitable for full-range, satellite, and monitor applications.
• 126 dB max. SPL and 1200 W peak power for powerful audio output.
• Vertical and horizontal use due to the coaxial design with a rotating, BEM-optimized CD horn (Patent Pending).
• Horn-loaded woofer for outstanding bass reproduction.
• DynX DSP technology with 4 presets, 3-band EQ, and delay function for customizable sound.
• 2 line/mic input channels with individual gain controllers plus mono mix output for versatile connectivity.
• 36 mm dual tilt stand attachment allowing for 0° and 5° tilt angles, with a sturdy design for stability.
• Shock-resistant front grille to protect the speaker from damage during transport and use.
• 4 aluminum grips with an ergonomic, rubber surface for easy handling.

In terms of technical specifications, the ICOA 12 is equipped with a custom-made 12" LF driver and a 1" HF driver, both designed to deliver exceptional sound quality. Its frequency response ranges from 50 Hz to 20 kHz, ensuring a broad spectrum of sound reproduction. With a crossover frequency of 2 kHz, this speaker can effectively separate low and high frequencies, delivering a rich audio experience.

The speaker is designed with multiple protection circuits, including a multiband limiter, over-voltage, over-current, and thermal overload protection, ensuring reliability and durability during use. The controls are user-friendly and include two gain knobs, an on/off switch, and a rotary/push encoder, all of which are clearly indicated by an LC display for easy monitoring.

Perfect for a variety of applications, the LD Systems ICOA 12 is an ideal choice for live sound events, DJ performances, and studio monitoring. It accommodates various input sources with its 2x XLR/Line and 1x 3.5mm Mini Jack inputs, while the XLR output provides connectivity to additional audio equipment. With an operating voltage range of 100 V - 240 V AC and a power consumption of 150 W, this speaker is designed to perform under a wide range of conditions.

Measuring 375x396x635mm and weighing 19.95kg, the ICOA 12 is compact yet powerful, making it easy to transport without compromising on sound quality. Whether you're setting up for a gig, a school event, or a casual gathering, the LD Systems ICOA 12 Active Box promises exceptional sound performance and versatility, ensuring your audio experience is nothing short of remarkable.
