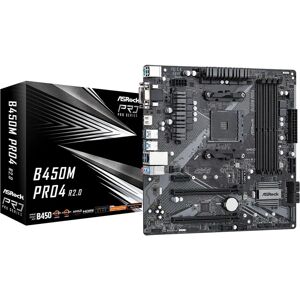

ASRock B450M Pro4 R2.0 Motherboard - Micro ATX - Socket AM4 - AMD B450
- Micro ATX form factor •
- Socket AM4 compatibility •
- Supports DDR4 memory •
- PCIe 3.0 slots •
- More features
Offers updated on: 15/09/2025. Paid and non-exhaustive ads. ★ The ratings are generated from multiple sources, including data provided by the merchant and publicly available information.
Description
Introducing the ASRock B450M Pro4 R2.0 Motherboard, a powerhouse for your computer setup, designed for maximum performance and flexibility. This micro ATX motherboard is equipped with a Socket AM4, providing compatibility with leading AMD processor series including AMD Ryzen™ 3, 5, and 7. Whether you're building a new gaming rig or upgrading your current system, this motherboard is crafted to handle everything you throw at it.
The ASRock B450M Pro4 R2.0 supports a variety of advanced features that cater to both casual users and hardcore gamers. Here are some key specifications:
- Processor Manufacturer: AMD
- Number of Memory Slots: 4 (DDR4-SDRAM)
- Maximum Internal Memory: 128 GB (Non-ECC)
- Supported Memory Clock Speeds: Up to 3200 MHz
- Storage Support: HDD & SSD with M.2, PCIe 3.0, and SATA III interfaces
Designed for dual-channel memory setup, this motherboard can efficiently handle multiple memory modules, boosting performance during intensive tasks. The RAID support (levels 0, 1, 10) ensures that your data is not only fast but also secure, making it an excellent choice for data enthusiasts.
The CrossFireX technology support lets you scale your graphics capabilities effortlessly, while the onboard graphics card boasts a maximum resolution of 4096 x 2160 pixels. With support for multiple displays (up to 3), this motherboard is perfect for multitasking, gaming, or even professional workloads.
A variety of connectivity options are available, including:
- USB 3.2 Gen 2 Type-C and Type-A Ports
- HDMI, DVI-D, and VGA Outputs
- Gigabit Ethernet LAN Port
The inclusion of a multi-channel audio chip ensures immersive sound, making your gaming and multimedia experience unforgettable. Combined with ASRock’s A-Tuning software, you can easily monitor your system’s health and performance, enhancing your overall computing experience.
This motherboard is designed to fit micro ATX cases, making it a fantastic choice for compact gaming builds. Perfect for scenarios like home theater PCs, gaming setups, or even casual office work, its versatility is unmatched.
Get ready to elevate your computing experience with the ASRock B450M Pro4 R2.0 Motherboard!
Features
Processor
- Processor manufacturer:AMD
- Processor socket:Socket AM4
- Compatible processor series:AMD Ryzen™ 3, AMD Ryzen™ 5, AMD Ryzen™ 7
Memory
- Supported memory types:DDR4-SDRAM
- Number of memory slots:4
- Memory slots type:DIMM
- Memory channels:Dual-channel
- ECC сompatibility:Non-ECC
- Supported memory clock speeds:2133,2400,2667,2933,3200 MHz
- Maximum internal memory:128 GB
- Unbuffered memory:Yes
Storage controllers
- Supported storage drive types:HDD & SSD
- Supported storage drive interfaces:M.2, PCI Express 3.0, SATA III
- RAID support:Yes
- RAID levels:0, 1, 10
Graphics
- Parallel processing technology support:CrossFireX, Quad-GPU CrossFireX
- On-board graphics card:Yes
- Graphics card family:AMD
- Maximum resolution:4096 x 2160 pixels
- HDCP:Yes
- DirectX version:12.0
- Discrete graphics support:Yes
- Number of displays supported:3
Internal I/O
- USB 2.0 connectors:2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors:1
- Number of SATA III connectors:4
- Front panel audio connector:Yes
- Front panel connector:Yes
- ATX Power connector (24-pin):Yes
- CPU fan connector:Yes
- Number of chassis fan connectors:3
- Chassis intrusion connector:Yes
- EPS power connector (8-pin):Yes
- Number of COM connectors:1
- TPM connector:Yes
- RGB LED pin header:Yes
Rear panel I/O ports
- USB 2.0 ports quantity:2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:4
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity:1
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity:1
- Ethernet LAN (RJ-45) ports:1
- VGA (D-Sub) ports quantity:1
- HDMI ports quantity:1
- HDMI version:1.4
- DVI-D ports quantity:1
- Headphone outputs:1
- Microphone in:Yes
- USB connector type:USB Type-A, USB Type-C
Network
- Ethernet LAN:Yes
- Ethernet interface type:Gigabit Ethernet
- LAN controller:Realtek RTL8111H
- Wake-on-LAN ready:Yes
- Wi-Fi:No
Features
- Motherboard chipset:AMD B450
- Audio chip:Realtek ALC892 / Realtek ALC897
- Audio output channels:7.1 channels
- PC health monitoring:Fan, Temperature, Voltage
- Component for:PC
- Motherboard form factor:micro ATX
- Motherboard chipset family:AMD
- Power source type:ATX
- Windows operating systems supported:Windows 10 x64, Windows 11 x64
Expansion slots
- PCI Express x16 (Gen 2.x) slots:1
- PCI Express x16 (Gen 3.x) slots:1
- Number of M.2 (M) slots:1
BIOS
- BIOS type:UEFI AMI
- BIOS memory size:128 Mbit
- ACPI version:5.1
- System Management BIOS (SMBIOS) version:2.3
Logistics data
- Harmonized System (HS) code:84733020
Weight & dimensions
- Width:244 mm
- Depth:244 mm
Packaging content
- Cables included:SATA
- Drivers included:Yes
- Bundled software:ASRock A-Tuning ASRock Polychrome SYNC ASRock XFast LAN
