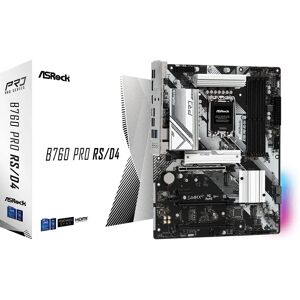

Asrock B760 Pro RS/D4 - Motherboard - ATX - LGA1700 - Gray
Our shoppers love
£111.89 from Amazon.co.uk
- Supports PCIe 4.0 M.2 SSDs •
- 2.5 Gb/s LAN for fast networking •
- Polychrome RGB lighting •
- Front USB 3.2 Gen2 Type-C •
- More features
Offers updated on: 15/09/2025. Paid and non-exhaustive ads. ★ The ratings are generated from multiple sources, including data provided by the merchant and publicly available information.
Description
Introducing the Asrock B760 Pro RS/D4 Motherboard, a robust platform designed to elevate your computing experience. This ATX motherboard, tailored for the latest Intel processors, promises power and versatility for gaming, content creation, and beyond.
Engineered with a LGA 1700 socket, the Asrock B760 Pro RS/D4 supports a range of Intel® Core™ processors, from i3 to i9, giving you freedom of choice for your CPU selection. With a maximum memory capacity of 128 GB and support for high-speed DDR4 RAM up to 5333 MHz, you can run applications smoothly and efficiently.
Features of the Asrock B760 Pro RS/D4 include:
- 4 DIMM slots for flexible memory options
- Dual-channel architecture for optimized performance
- Support for both HDD and SSD storage with various interfaces, including M.2 and SATA III
- RAID support for enhanced data redundancy and performance
Stay connected with multiple USB connectors, including 5 USB 3.2 Gen 1 Type-A ports and 1 Type-C port, ensuring you have enough options for peripheral connections. The motherboard also includes 2.5 Gigabit Ethernet for ultra-fast internet connectivity, perfect for online gaming or video streaming.
With built-in Realtek ALC897 audio chip, experience immersive sound with up to 7.1 channels. Additionally, HDMI and DVI-D ports allow you to connect to high-resolution displays, enhancing your visual experience.
The Asrock B760 Pro RS/D4 motherboard is also designed with efficiency in mind, certified with FCC and CE approvals, making it suitable even for energy-conscious builds. Whether you're a hardcore gamer or a professional video editor, this motherboard offers stability and performance.
Build your next PC with confidence—choose the Asrock B760 Pro RS/D4 motherboard for a future-proof solution that adapts to evolving technology and performance needs.
Features
Processor
- Processor manufacturer:Intel
- Processor socket:LGA 1700
- Compatible processor series:Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9
- Maximum number of SMP processors:1
Memory
- Supported memory types:DDR4-SDRAM
- Number of memory slots:4
- Memory slots type:DIMM
- Memory channels:Dual-channel
- ECC сompatibility:Non-ECC
- Supported memory clock speeds:3200,4000,4266,4400,5333 MHz
- Maximum internal memory:128 GB
Storage controllers
- Supported storage drive types:HDD & SSD
- Supported storage drive interfaces:M.2, SATA III
- RAID support:Yes
- RAID levels:0, 1, 5, 10
Graphics
- Parallel processing technology support:Not supported
- HDCP:Yes
Internal I/O
- USB 2.0 connectors:2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors:2
- USB 3.2 Gen 2 (3.1 Gen 2) connectors:1
- Number of SATA III connectors:4
- Front panel audio connector:Yes
- Front panel connector:Yes
- ATX Power connector (24-pin):Yes
- CPU fan connector:Yes
- Chassis intrusion connector:Yes
- EPS power connector (8-pin):Yes
- TPM connector:Yes
- RGB LED pin header:Yes
Rear panel I/O ports
- USB 2.0 ports quantity:2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:5
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity:1
- Ethernet LAN (RJ-45) ports:1
- HDMI ports quantity:1
- DVI-D ports quantity:1
- DisplayPort version:1.4
- Headphone outputs:1
- Line-in:Yes
- Microphone in:Yes
Network
- Ethernet LAN:Yes
- Ethernet interface type:2.5 Gigabit Ethernet
- LAN controller:Realtek RTL8125-BG
- Wi-Fi:No
Features
- Motherboard chipset:Intel B760
- Audio chip:Realtek ALC897
- Audio output channels:7.1 channels
- Component for:PC
- Motherboard form factor:ATX
- Motherboard chipset family:Intel
- Compatible operating systems:Microsoft® Windows® 10 64-bit / 11 64-bit
- Certification:- FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required)
Expansion slots
- PCI Express x1 (Gen 3.x) slots:1
- PCI Express x16 (Gen 3.x) slots:1
- PCI Express x16 (Gen 4.x) slots:2
- Number of M.2 (M) slots:1
BIOS
- BIOS type:UEFI AMI
- BIOS memory size:128 Mbit
Weight & dimensions
- Width:305 mm
- Depth:244 mm
