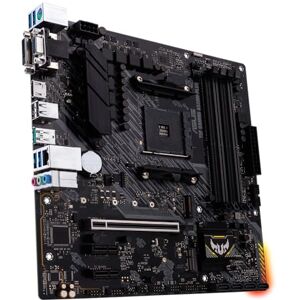

ASUS TUF GAMING A520M-PLUS WIFI Motherboard - Micro ATX - AMD A520 - Gaming
Our shoppers love
£82.99 from Amazon.co.uk
- Supports AMD Ryzen processors •
- Built-in Wi-Fi and Bluetooth •
- DDR4 memory support •
- PCIe 3.0 x16 slot for graphics •
- More features
Offers updated on: 14/09/2025. Paid and non-exhaustive ads. ★ The ratings are generated from multiple sources, including data provided by the merchant and publicly available information.
Description
Introducing the ASUS TUF GAMING A520M-PLUS WIFI Motherboard, a powerhouse designed for gaming enthusiasts, ensuring you’re equipped for maximum performance. Released with advanced features, this micro ATX motherboard supports an array of AMD processors helping you build a cutting-edge gaming rig.
With the AMD A520 chipset, this motherboard is tailored for the AMD Ryzen 3000 and 5000 Series. It features a Socket AM4 processor socket to ensure compatibility. Its DDR4-SDRAM memory support accommodates up to 128 GB of memory across 4 DIMM slots, providing the speed and capacity necessary for intense gaming sessions.
The motherboard stands out with its dual-channel memory architecture, ensuring smooth multitasking and responsiveness. You can take advantage of various memory clock speeds ranging from 2133 MHz all the way up to 4800 MHz, perfect for those who want to push the limits of speed.
Storage won’t be a problem; with support for 5 drives, including HDDs and SSDs via M.2 and PCI Express 3.0 interfaces, you can configure your dream setup. Additionally, RAID levels 0, 1, and 10 enhance data management and integrity.
Connectivity is enhanced with USB 3.2 Gen 1 ports and Gigabit Ethernet, ensuring quick file transfer and network access. The inclusion of Wi-Fi 5 (802.11ac) and Bluetooth 5.0 means you can enjoy wireless connectivity with ease. And with an HDMI output, achieving a maximum resolution of 3840 x 2160 pixels, your visuals will be stunning.
The layout includes ample cooling options with multiple fan connectors and an RGB LED pin header for a personalized touch. Integrated 7.1 channel audio powered by Realtek provides an immersive sound experience, making it perfect for gaming or movie nights.
This motherboard is packed with necessary features for gamers, including Wake-on-LAN support and a reliable BIOS interface for easy configurations. It is also designed to work seamlessly with Windows 10 x64.
If you're looking to create a robust gaming setup or upgrade your existing system, the ASUS TUF GAMING A520M-PLUS WIFI is your ideal companion. Get ready to take your gaming experience to new heights with this high-performance motherboard.
Features
Processor
- Processor manufacturer:AMD
- Processor socket:Socket AM4
- Compatible processor series:AMD Ryzen 3000 Series, AMD Ryzen 5000 Series
- Supported processor sockets:Socket AM4
Memory
- Supported memory types:DDR4-SDRAM
- Number of memory slots:4
- Memory slots type:DIMM
- Memory channels:Dual-channel
- ECC сompatibility:ECC
- Supported memory clock speeds:2133,2400,2666,2800,3000,3200,3333,3466,3600,3733,3866,4000,4133,4266,4400,4466,4600,4800 MHz
- Maximum internal memory:128 GB
- Unbuffered memory:Yes
Storage controllers
- Supported storage drive types:HDD & SSD
- Supported storage drive interfaces:M.2, PCI Express 3.0, SATA III
- Number of storage drives supported:5
- RAID levels:0, 1, 10
Graphics
- Parallel processing technology support:Not supported
- Maximum resolution:3840 x 2160 pixels
Internal I/O
- USB 2.0 connectors:2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors:1
- Number of SATA III connectors:4
- S/PDIF out connector:Yes
- Front panel audio connector:Yes
- ATX Power connector (24-pin):Yes
- CPU fan connector:Yes
- Number of chassis fan connectors:2
- EPS power connector (8-pin):Yes
- Number of COM connectors:1
- TPM connector:Yes
- 12V power connector:Yes
- RGB LED pin header:Yes
Rear panel I/O ports
- USB 2.0 ports quantity:2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:4
- Ethernet LAN (RJ-45) ports:1
- PS/2 ports quantity:1
- VGA (D-Sub) ports quantity:1
- HDMI ports quantity:1
- HDMI version:2.1
- DisplayPorts quantity:1
- DisplayPort version:1.2
- Headphone outputs:3
- Microphone in:Yes
- WiFi-AP antenna jack:1
- USB connector type:USB Type-A
Network
- Ethernet LAN:Yes
- Ethernet interface type:Gigabit Ethernet
- Wake-on-LAN ready:Yes
- Wi-Fi:Yes
- Top Wi-Fi standard:Wi-Fi 5 (802.11ac)
- Wi-Fi standards:802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
- WLAN controller model:Realtek RTL8821CE
- Bluetooth:Yes
- Bluetooth version:5.0
Features
- Motherboard chipset:AMD A520
- Audio chip:Realtek ALC887 / Realtek ALC897
- Audio output channels:7.1 channels
- Component for:PC
- Motherboard form factor:micro ATX
- Motherboard chipset family:AMD
- Windows operating systems supported:Windows 10 x64
Expansion slots
- PCI Express x1 (Gen 3.x) slots:2
- PCI Express x16 (Gen 3.x) slots:1
- Number of M.2 (M) slots:1
BIOS
- BIOS type:UEFI AMI
- BIOS memory size:128 Mbit
- Clear CMOS jumper:Yes
Logistics data
- Harmonized System (HS) code:84733020
Weight & dimensions
- Width:244 mm
- Depth:244 mm
- Height:67 mm
Packaging content
- Cables included:SATA
- Drivers included:Yes
Other features
- Weight:900 g
