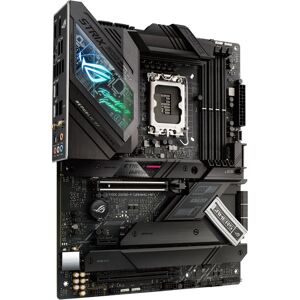

ASUS ROG Z690-F Gaming WiFi - DDR5 Motherboard
- Supports 12th Gen Intel Core processors •
- DDR5 memory support •
- PCIe 5.0 compatibility •
- WiFi 6E onboard •
- More features
Offers updated on: 16/09/2025. Paid and non-exhaustive ads. ★ The ratings are generated from multiple sources, including data provided by the merchant and publicly available information.
Description
Discover the power-packed performance of the ASUS ROG Z690-F Gaming WiFi Motherboard, designed to elevate your gaming and computing experience. Launched as part of ASUS's latest line-up, this top-tier motherboard is equipped with cutting-edge features to handle today’s demanding tasks seamlessly.
Powered by Intel, the ASUS ROG Z690-F supports the latest LGA 1700 socket, accommodating various processors including Intel® Celeron®, Core™ i3, i5, i7, i9, and Pentium G series. With a remarkable maximum internal memory of 128 GB, this motherboard ensures that multi-tasking is a breeze. It is built for DDR5-SDRAM, ensuring speed and efficiency with supported clock speeds ranging up to 6400 MHz.
With four memory slots, each supporting dual-channel architecture, the ASUS ROG Z690-F maximizes your system's performance. Users can choose between a range of storage options including HDD & SSD, and take advantage of the RAID support for security and performance enhancement.
Connectivity isn't overlooked with a plethora of USB ports available, featuring USB 3.2 Gen 2 Type-A and Type-C as well as USB 2.0 connectors. This motherboard meets modern needs with 2.5 Gigabit Ethernet support and Wi-Fi 6E, offering faster and more reliable network performance.
- Top Features:
- Compatible with Intel® processors, including i9
- Supports speed-optimized DDR5 memory
- Six SATA III connectors for extensive storage options
- Advanced cooling solutions with multiple fan connectors
- Comprehensive audio with 7.1 channel audio output
This motherboard stands out for gamers and creators alike, providing a robust platform for high-intensity workloads. Whether you're streaming your favorite games or performing heavy computational tasks, the ASUS ROG Z690-F is an ideal choice. The incorporation of RGB lighting adds an aesthetic edge, ensuring your rig looks as good as it performs.
Built on the ATX form factor, it supports impressive features packed into a compact space. The UEFI BIOS with a clear CMOS button allows for easy customization and troubleshooting, while the sizeable thermal management ensures your components stay cool during intense usage.
Complete with a selection of accessories including SATA cables and dual-band Wi-Fi antennas, setting up your system is straightforward. Whether you are aiming to build a high-end gaming setup or a reliable workstation, the ASUS ROG Z690-F Gaming WiFi is a stellar pick for future-proofing your PC.
Upgrade to the ASUS ROG Z690-F today and take the first step towards a premium computing experience.
Features
Processor
- Processor manufacturer:Intel
- Processor socket:LGA 1700
- Compatible processor series:Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel Pentium G
Memory
- Supported memory types:DDR5-SDRAM
- Number of memory slots:4
- Memory slots type:DIMM
- Memory channels:Dual-channel
- ECC сompatibility:Non-ECC
- Supported memory clock speeds:4800,5000,5200,5400,5600,5800,6000,6200,6400 MHz
- Maximum internal memory:128 GB
- Unbuffered memory:Yes
Storage controllers
- Supported storage drive types:HDD & SSD
- Supported storage drive interfaces:M.2, SATA
- RAID support:Yes
- RAID levels:0, 1, 5, 10
Graphics
- Parallel processing technology support:Not supported
Internal I/O
- USB 2.0 connectors:2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors:1
- USB 3.2 Gen 2 (3.1 Gen 2) connectors:1
- Number of SATA III connectors:6
- Front panel audio connector:Yes
- ATX Power connector (24-pin):Yes
- Power fan connector:Yes
- CPU fan connector:Yes
- Number of chassis fan connectors:5
- EPS power connector (8-pin):Yes
- TPM connector:Yes
- 12V power connector:Yes
- RGB LED pin header:Yes
Rear panel I/O ports
- USB 2.0 ports quantity:2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:4
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity:1
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity:2
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity:1
- Ethernet LAN (RJ-45) ports:1
- HDMI ports quantity:1
- HDMI version:2.1
- Headphone outputs:1
- Microphone in:Yes
- S/PDIF out port:Yes
Network
- Ethernet LAN:Yes
- Ethernet interface type:2.5 Gigabit Ethernet
- Wi-Fi:Yes
- Top Wi-Fi standard:Wi-Fi 6E (802.11ax)
- Wi-Fi standards:802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
- Bluetooth:Yes
- Bluetooth version:5.2
Features
- Motherboard chipset:Intel Z690
- Audio chip:Realtek ALC4080
- Audio output channels:7.1 channels
- Component for:PC
- Motherboard form factor:ATX
- Motherboard chipset family:Intel
- Windows operating systems supported:Windows 10, Windows 11
Expansion slots
- PCI Express x1 (Gen 3.x) slots:1
- PCI Express x16 (Gen 3.x) slots:1
- Number of M.2 (M) slots:4
BIOS
- BIOS type:UEFI AMI
- BIOS memory size:256 Mbit
- Clear CMOS button:Yes
Logistics data
- Harmonized System (HS) code:84733020
Weight & dimensions
- Width:305 mm
- Depth:244 mm
Packaging content
- Cables included:SATA
- Drivers included:Yes
Other features
- Weight:1.54 kg
- Packaging content:4 x SATA 6Gb/s cables 1 x ASUS 2x2 Dual-Band Wi-Fi moving antennas 1 x M.2 Q-Latch package 1 x M.2 Q-Latch package for M.2 backplate 2 x M.2 Rubber Packages 1 x ROG key chain 1 x cable tie 1 x ROG STRIX stickers 1 x ROG STRIX thank you card 1 x Support DVD 1 x User manual
