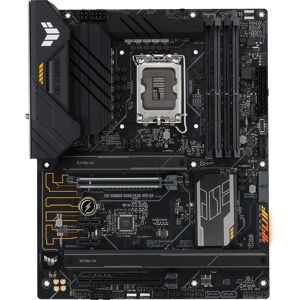

ASUS TUF Gaming B660-Plus Wi-Fi D4 Motherboard - ATX, LGA1700
- Supports Intel LGA1700 processors •
- Wi-Fi 6 and Bluetooth 5.2 •
- Supports DDR4 RAM up to 5000 MHz •
- Multiple M.2 and SATA ports •
- More features
Offers updated on: 04/11/2025. Paid and non-exhaustive ads. ★ The ratings are generated from multiple sources, including data provided by the merchant and publicly available information.
Description
Introducing the ASUS TUF Gaming B660-Plus Wi-Fi D4 Motherboard, a powerful piece of technology designed for serious gamers and high-performance PC builders. With its robust features and durable design, this motherboard is set to elevate your gaming experience.
Engineered to support Intel's latest processors, the B660-Plus is compatible with a range of chips, including Intel® Celeron®, Core™ i3, i5, i7, i9 and Pentium series. This flexibility ensures that you can choose the best processor for your needs without being limited by the motherboard.
One of the standout features of the ASUS TUF Gaming B660-Plus is its support for DDR4-SDRAM, with a maximum internal memory capacity of 128 GB. With four memory slots and dual-channel architecture, it delivers exceptional performance for multitasking and resource-intensive applications.
- Processor Socket: LGA 1700
- Maximum Memory Speed: 5333 MHz
- Storage Options: HDD & SSD via M.2 and SATA interfaces
- RAID Support: Levels 0, 1, 5, 10
This motherboard supports up to three M.2 slots, allowing for quick and efficient storage options that can significantly reduce load times. Additional SATA III connectors enhance your storage capabilities, ensuring ample space for games and files.
Networking is seamless with integrated Wi-Fi 6 (802.11ax) support, making online gaming, streaming, and downloading faster and more reliable. The board also boasts Bluetooth 5.2 capabilities for easy connections to various peripherals.
Connectivity options are abundant, including multiple USB ports (from USB 2.0 to 3.2 Gen 2x2 Type-C) and HDMI 2.1 output for easy attachment to external displays. The audio quality is equally impressive with support for 7.1-channel audio.
- Number of USB Ports: 7
- HDMI Ports: 1
- Ethernet LAN: 2.5 Gigabit Ethernet
The sturdy ATX form factor ensures compatibility with a wide array of cases, and with features like RGB LED pin headers and multiple fan connectors, you have the flexibility to customize and cool your setup how you like. With a weight of just 1.35 kg, it's lightweight yet built to last.
This motherboard is ideal for gamers looking to build a reliable and high-performance PC that can handle anything from casual gaming to intensive tasks. The ASUS TUF Gaming B660-Plus Wi-Fi D4 is your next step towards a superior gaming experience!
Features
Processor
- Processor manufacturer:Intel
- Processor socket:LGA 1700
- Compatible processor series:Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®, Intel® Pentium® Gold
- Maximum number of SMP processors:1
Memory
- Supported memory types:DDR4-SDRAM
- Number of memory slots:4
- Memory slots type:DIMM
- Memory channels:Dual-channel
- ECC сompatibility:Non-ECC
- Supported memory clock speeds:2133,2400,2666,2800,2933,3000,3200,3333,3400,3466,3600,3733,4000,4400,4600,4800,5000,5066,5333 MHz
- Maximum internal memory:128 GB
- Unbuffered memory:Yes
Storage controllers
- Supported storage drive types:HDD & SSD
- Supported storage drive interfaces:M.2, SATA
- RAID levels:0, 1, 5, 10
Graphics
- Number of displays supported:2
Internal I/O
- USB 2.0 connectors:2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors:1
- USB 3.2 Gen 2 (3.1 Gen 2) connectors:1
- Number of SATA III connectors:4
- S/PDIF out connector:Yes
- Front panel audio connector:Yes
- ATX Power connector (24-pin):Yes
- CPU fan connector:Yes
- Number of chassis fan connectors:3
- Peripheral (Molex) power connectors (4-pin):1
- EPS power connector (8-pin):Yes
- Number of COM connectors:1
- Thunderbolt headers:1
- 12V power connector:Yes
- RGB LED pin header:Yes
Rear panel I/O ports
- USB 2.0 ports quantity:1
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:3
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity:1
- USB 3.2 Gen 2x2 Type-C ports quantity:1
- Ethernet LAN (RJ-45) ports:1
- HDMI ports quantity:1
- HDMI version:2.1
- DisplayPorts quantity:1
- DisplayPort version:1.4
- Headphone outputs:1
- Microphone in:Yes
- S/PDIF out port:Yes
- USB connector type:USB Type-A, USB Type-C
Network
- Ethernet LAN:Yes
- Ethernet interface type:2.5 Gigabit Ethernet
- Wi-Fi:Yes
- Top Wi-Fi standard:Wi-Fi 6 (802.11ax)
- Wi-Fi standards:802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
- Bluetooth:Yes
- Bluetooth version:5.2
Features
- Motherboard chipset:Intel B660
- Audio output channels:7.1 channels
- Component for:PC
- Motherboard form factor:ATX
- Motherboard chipset family:Intel
- Windows operating systems supported:Windows 10 x64, Windows 11 x64
Expansion slots
- PCI Express x1 (Gen 3.x) slots:2
- PCI Express x16 (Gen 3.x) slots:1
- PCI Express x16 (Gen 5.x) slots:1
- Number of M.2 (M) slots:3
BIOS
- BIOS type:UEFI AMI
- BIOS memory size:128 Mbit
Logistics data
- Harmonized System (HS) code:84733020
Weight & dimensions
- Width:305 mm
- Depth:244 mm
- Height:68 mm
Packaging content
- Cables included:SATA
- Drivers included:Yes
Other features
- Weight:1.35 kg
