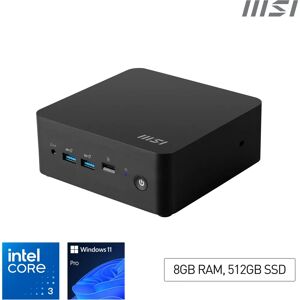

MSI Cubi NUC 1M i3 100U - Compact Mini PC with 8GB RAM & 512GB SSD

Processor

• Processor manufacturer:Intel
• Processor family:Intel Core 3
• Processor generation:Intel Core (Series 1)
• Processor model:100U
• Processor cores:6
• Processor threads:8
• Performance cores:2
• Efficient cores:4
• Performance-core Max Turbo Frequency:4.7 GHz
• Efficient-core Max Turbo Frequency:3.3 GHz
• Performance-core base frequency:1.2 GHz
• Efficient-core base frequency:0.9 GHz
• Processor cache:10 MB
• Number of processors installed:1
• Processor base power:15 W
• Maximum turbo power:55 W

Memory

• Internal memory:8 GB
• Maximum internal memory:64 GB
• Internal memory type:DDR5-SDRAM
• Memory layout (slots x size):1 x 8 GB
• Memory slots:2x SO-DIMM
• Memory clock speed:5200 MHz

Storage

• Total storage capacity:512 GB
• Storage media:SSD
• Optical drive type:No
• Number of storage drives installed:1
• Number of storage drives supported:3
• HDD size:2.5"
• Total SSDs capacity:512 GB
• Number of SSDs installed:1
• SSD capacity:512 GB
• SSD interface:M.2
• NVMe:Yes
• SSD form factor:M.2
• M.2 SSD size:2280 (22 x 80 mm)
• Card reader integrated:Yes
• Compatible memory cards:MicroSD (TransFlash)

Graphics

• Discrete graphics card:No
• On-board graphics card:Yes
• Discrete graphics card model:Not available
• On-board GPU manufacturer:Intel
• On-board graphics card family:Intel Graphics
• On-board graphics card model:Intel Graphics

Network

• Ethernet LAN:Yes
• LAN controller:Intel I226-V
• Wi-Fi:Yes
• Top Wi-Fi standard:Wi-Fi 6E (802.11ax)
• Wi-Fi standards:Wi-Fi 6E (802.11ax)
• WLAN controller manufacturer:Intel
• WLAN controller model:Intel Wi-Fi 6E AX211
• Bluetooth:Yes
• Bluetooth version:5.3
• Wake-on-LAN ready:Yes

Ports & interfaces

• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:4
• PowerShare:No
• USB Type-C DisplayPort Alternate Mode:Yes
• Intel® Thunderbolt 4:Yes
• Thunderbolt 4 ports quantity:2
• DVI port:No
• HDMI ports quantity:2
• HDMI version:1.4/2.1
• Ethernet LAN (RJ-45) ports:2
• Microphone in:No
• Headphone outputs:1
• Line-out:No
• Line-in:No
• Combo headphone/mic port:Yes
• S/PDIF out port:No
• DC-in jack:Yes
• Number of rear USB ports:4
• Number of front USB ports:2
• Number of front audio ports:1
• Fiber NIC port (Flex I/O):No

Design

• Chassis type:Mini PC
• Colour name:Black
• Volume:0.84 L
• Placement supported:Horizontal
• VESA mounting:Yes
• Cable lock slot:Yes
• Cable lock slot type:Kensington
• Product colour:Black
• Housing material:Plastic
• Introduction year:2024
• Introduction month:July
• Country of origin:China
