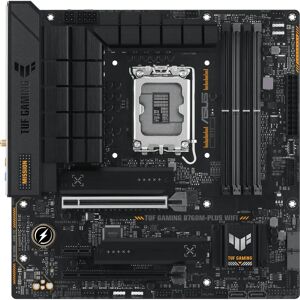

ASUS TUF Gaming B760M-Plus WIFI - Intel B760 Motherboard
- Supports latest Intel processors •
- Wi-Fi 6 and Bluetooth 5.2 •
- DDR5 memory support •
- PCIe 4.0 storage •
- More features
Offers updated on: 14/09/2025. Paid and non-exhaustive ads. ★ The ratings are generated from multiple sources, including data provided by the merchant and publicly available information.
Description
Discover the power of gaming with the ASUS TUF Gaming B760M-Plus WIFI, a motherboard that combines cutting-edge technology with durability, perfect for hardcore gamers and PC builders alike.
Released recently, this motherboard supports Intel processors from the Celeron to the high-end Core i9, ensuring that you have the flexibility to choose the perfect CPU for your gaming rig.
Built on the LGA 1700 socket, it is designed to handle the latest in processing power and features advanced connectivity options.
This motherboard supports up to 128 GB of DDR5-SDRAM with memory clock speeds ranging from 4800 MHz to an astonishing 7200 MHz, giving you the performance edge needed for intensive gaming sessions.
Equipped with four DIMM memory slots, it allows for dual-channel memory configuration, optimizing data transfer rates for a seamless gaming experience.
Storage options are plentiful with support for multiple drive types including HDDs and SSDs, utilizing M.2 and SATA III interfaces.
You can set up to six storage drives and four HDDs, and enjoy the reliability of RAID configurations (levels 0, 1, 5, 10) for data management.
This motherboard also features comprehensive USB support, with multiple connectors including USB 3.2 Gen 2 and Type-C ports, ensuring high-speed data transfers for peripherals.
Stay connected with built-in Ethernet and Wi-Fi 6 capabilities, providing fast connectivity for online gaming and streaming.
The onboard audio system delivers immersive 7.1 channel audio, enhancing your gaming experience with rich sound quality.
Take advantage of customizable RGB lighting to personalize your setup, connecting easily with dedicated headers.
Its micro ATX form factor fits perfectly in a compact case, while ample expansion options allow you to grow your system.
Whether you're working on design, video editing, or gaming, this motherboard has the features and capabilities to meet all your demands.
With support for both Windows 10 and 11, you can run the latest software without hassle.
The ASUS TUF Gaming B760M-Plus WIFI is a powerhouse built for versatility, reliability, and performance.
Upgrade your system today and enjoy a gaming experience like never before!
Don’t just play, dominate with the ultimate motherboards that work as hard as you do!
- Compatible with Intel processors, LGA 1700 socket
- Maximum memory capacity: 128 GB, DDR5-SDRAM
- Support for fast storage with RAID capabilities
- Designed for seamless online connectivity with Wi-Fi 6
- Immersive audio system, perfect for gaming
Features
Processor
- Processor manufacturer:Intel
- Processor socket:LGA 1700
- Compatible processor series:Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9
- Maximum number of SMP processors:1
- Supported processor sockets:LGA 1700
Memory
- Supported memory types:DDR5-SDRAM
- Number of memory slots:4
- Memory slots type:DIMM
- Memory channels:Dual-channel
- ECC сompatibility:Non-ECC
- Supported memory clock speeds:4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200 MHz
- Supported memory clock speed (max):7200 MHz
- Maximum internal memory:128 GB
- Unbuffered memory:Yes
Storage controllers
- Supported storage drive types:HDD & SSD
- Supported storage drive interfaces:M.2, SATA III
- Number of HDDs supported:4
- Number of storage drives supported:6
- RAID support:Yes
- RAID levels:0, 1, 5, 10
Graphics
- Parallel processing technology support:Not supported
Internal I/O
- USB 2.0 connectors:2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors:1
- USB 3.2 Gen 2 (3.1 Gen 2) connectors:1
- Number of SATA III connectors:4
- Front panel audio connector:Yes
- ATX Power connector (24-pin):Yes
- CPU fan connector:Yes
- Number of chassis fan connectors:3
- Peripheral (Molex) power connectors (4-pin):1
- EPS power connector (8-pin):Yes
- Thunderbolt headers:1
- 12V power connector:Yes
- RGB LED pin header:Yes
Rear panel I/O ports
- USB 2.0 ports quantity:2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:3
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity:2
- USB 3.2 Gen 2x2 Type-C ports quantity:1
- Ethernet LAN (RJ-45) ports:1
- HDMI ports quantity:1
- HDMI version:2.1
- DisplayPorts quantity:1
- DisplayPort version:1.4
- Headphone outputs:1
- Line-in:Yes
- Microphone in:Yes
- S/PDIF out port:Yes
Network
- Ethernet LAN:Yes
- Ethernet interface type:2.5 Gigabit Ethernet
- Wi-Fi:Yes
- Top Wi-Fi standard:Wi-Fi 6 (802.11ax)
- Wi-Fi standards:802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
- Bluetooth:Yes
- Bluetooth version:5.2
Features
- Motherboard chipset:Intel B760
- Audio output channels:7.1 channels
- Component for:PC
- Motherboard form factor:micro ATX
- Motherboard chipset family:Intel
- Windows operating systems supported:Windows 10 x64, Windows 11
Expansion slots
- PCI Express x1 (Gen 3.x) slots:2
- PCI Express x16 (Gen 4.x) slots:1
- PCI Express x16 (Gen 5.x) slots:1
- Number of M.2 (M) slots:3
BIOS
- BIOS type:UEFI AMI
- BIOS memory size:128 Mbit
Packaging data
- Package width:275 mm
- Package depth:275 mm
- Package height:67.5 mm
- Package weight:1.65 kg
Weight & dimensions
- Width:244 mm
- Depth:244 mm
