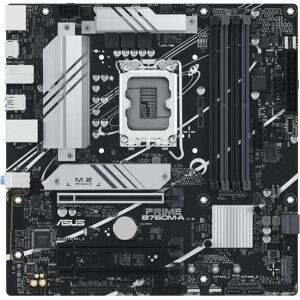

ASUS Prime B760M-A-CSM - Micro ATX - DDR5 - Intel B760 Motherboard
Our shoppers love
£131.71 from Amazon.co.uk
- Compatible with 12th and 13th Gen Intel Core processors •
- Supports DDR5 memory up to 7200 MHz (O.C.) •
- Dual M.2 slots for fast storage •
- DisplayPort, HDMI, USB 3.2 Gen 2 ports •
- More features
Offers updated on: 19/12/2025. Paid and non-exhaustive ads. ★ The ratings are generated from multiple sources, including data provided by the merchant and publicly available information.
Description
Introducing the ASUS Prime B760M-A-CSM Motherboard, a powerful Micro ATX solution designed for the latest generation of Intel processors. With its launch, this motherboard sets a new standard for performance and efficiency.
This motherboard features the Intel B760 chipset and supports processors socketed with LGA 1700, including Intel® Celeron®, Pentium® Gold, and the powerful Core™ i3, i5, i7, and i9 series. This means you can build a configuration that meets all your demands, whether for gaming, content creation, or general productivity.
Memory performance is taken to the next level with 4 DIMM slots supporting DDR5 SDRAM up to a maximum of 128 GB and speeds reaching 7200 MHz. Enjoy smooth multitasking and efficient data handling, enhancing your overall experience.
The storage capabilities are impressive as well, accommodating up to 6 drives with both HDD and SSD options through M.2 and SATA III interfaces. With 4 SATA III connectors, you can create an extensive storage solution tailored to your needs.
- USB Connectivity: 3 x USB 2.0, 3 x USB 3.2 Gen 1, and 2 x USB 3.2 Gen 2 Type-A ensure all your peripherals connect with ease.
- High-Quality Audio: Experience 7.1 channel audio through integrated ports ensuring immersive sound for gaming and media.
- Networking: Equipped with a 2.5 Gigabit Ethernet port and Wi-Fi, your internet experience will be both fast and reliable.
- Expansive GPU Support: Features 3 PCIe x16 Gen 4.x slots for high-performance graphics cards, allowing for multi-GPU configurations.
With UEFI BIOS and a clear CMOS button, customization of your system is straightforward. Whether you're a casual PC builder or a seasoned expert, this motherboard offers exceptional versatility.
The ASUS Prime B760M-A-CSM is perfect for gamers, creative professionals, and anyone who demands a robust performance from their PC. Its advanced features and solid replication of pricing will certainly make it a wise choice for your next build.
Don't miss out on this incredible motherboard that combines cutting-edge technology with perfect design - explore your options with the ASUS Prime B760M-A-CSM today!
Features
Processor
- Processor manufacturer:Intel
- Processor socket:LGA 1700
- Compatible processor series:Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9
- Supported processor sockets:LGA 1700
Memory
- Supported memory types:DDR5-SDRAM
- Number of memory slots:4
- Memory slots type:DIMM
- Memory channels:Dual-channel
- ECC сompatibility:Non-ECC
- Supported memory clock speeds:7200,7000,6800,6600,6400,6200,6000,5800,5600,5400,5200,5000,4800 MHz
- Supported memory clock speed (max):7200 MHz
- Maximum internal memory:128 GB
- Unbuffered memory:Yes
Storage controllers
- Supported storage drive types:HDD & SSD
- Supported storage drive interfaces:M.2, SATA III
- Number of HDDs supported:4
- Number of storage drives supported:6
Graphics
- Parallel processing technology support:Not supported
Internal I/O
- USB 2.0 connectors:3
- USB 3.2 Gen 1 (3.1 Gen 1) connectors:3
- Number of SATA III connectors:4
- S/PDIF out connector:Yes
- Front panel audio connector:Yes
- Front panel connector:Yes
- ATX Power connector (24-pin):Yes
- CPU fan connector:Yes
- Number of chassis fan connectors:2
- EPS power connector (8-pin):Yes
- Number of COM connectors:1
- TPM connector:Yes
- 12V power connector:Yes
- RGB LED pin header:Yes
Rear panel I/O ports
- USB 2.0 ports quantity:4
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity:2
- Ethernet LAN (RJ-45) ports:1
- PS/2 ports quantity:1
- HDMI ports quantity:2
- DisplayPorts quantity:1
- Headphone outputs:1
- Line-in:Yes
- Microphone in:Yes
- WiFi-AP antenna jack:1
Network
- Ethernet LAN:Yes
- Ethernet interface type:2.5 Gigabit Ethernet
- Wi-Fi:Yes
Features
- Motherboard chipset:Intel B760
- Audio output channels:7.1 channels
- Component for:PC
- Motherboard form factor:micro ATX
- Motherboard chipset family:Intel
- Windows operating systems supported:Windows 10 x64, Windows 11
Expansion slots
- PCI Express x16 (Gen 4.x) slots:3
- Number of M.2 (M) slots:2
BIOS
- BIOS type:UEFI AMI
- BIOS memory size:128 Mbit
- Clear CMOS button:Yes
Packaging data
- Package width:270 mm
- Package depth:263 mm
- Package height:52 mm
- Package weight:1.14 kg
Weight & dimensions
- Width:244 mm
- Depth:244 mm
- Height:40 mm
Packaging content
- Cables included:SATA
