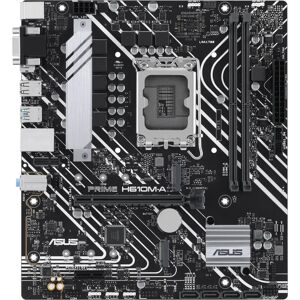

ASUS Prime H610M-A- Micro ATX Motherboard

Processor

• Processor manufacturer:Intel
• Processor socket:LGA 1700
• Compatible processor series:Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold

Memory

• Supported memory types:DDR5-SDRAM
• Number of memory slots:2
• Memory slots type:DIMM
• Memory channels:Dual-channel
• ECC сompatibility:Non-ECC
• Supported memory clock speeds:4800,5000,5200,5400,5600 MHz
• Maximum internal memory:96 GB
• Unbuffered memory:Yes

Storage controllers

• Supported storage drive types:HDD & SSD
• Supported storage drive interfaces:M.2, SATA III
• Number of HDDs supported:4
• Number of storage drives supported:6

Graphics

• Parallel processing technology support:Not supported

Internal I/O

• USB 2.0 connectors:2
• USB 3.2 Gen 1 (3.1 Gen 1) connectors:1
• Number of SATA III connectors:4
• S/PDIF out connector:Yes
• Front panel audio connector:Yes
• ATX Power connector (24-pin):Yes
• CPU fan connector:Yes
• Number of chassis fan connectors:2
• EPS power connector (8-pin):Yes
• Number of COM connectors:1
• TPM connector:Yes
• 12V power connector:Yes

Rear panel I/O ports

• USB 2.0 ports quantity:4
• USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity:2
• Ethernet LAN (RJ-45) ports:1
• PS/2 ports quantity:2
• VGA (D-Sub) ports quantity:1
• HDMI ports quantity:1
• DisplayPorts quantity:1
• Headphone outputs:1
• Microphone in:Yes
