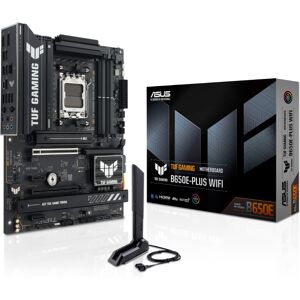

ASUS B650E-PLUS WIFI Motherboard - AMD Ryzen 7000 Series, DDR5, 256GB
Our shoppers love
£215.81 from Amazon.co.uk
- Supports AMD Ryzen 7000, 8000, 9000 Series processors •
- Socket AM5 compatible •
- DDR5 memory support •
- More features
Offers updated on: 14/09/2025. Paid and non-exhaustive ads. ★ The ratings are generated from multiple sources, including data provided by the merchant and publicly available information.
Description
Introducing the ASUS B650E-PLUS WIFI Motherboard, designed for cutting-edge performance with the latest AMD Ryzen 7000 Series processors. This advanced motherboard supports DDR5 memory and substantial up to 256GB for power users seeking the best in gaming and productivity.
With a multitude of features, the ASUS B650E-PLUS is perfect for both gamers and professionals who need top-notch hardware. Its Socket AM5 ensures compatibility across several AMD Ryzen processor series, paving the way for high-speed data processing.
The motherboard boasts:
- 4 DIMM Slots: Dual-channel setup for optimal memory performance.
- 256GB Maximum Internal Memory: Sufficient for demanding applications and multitasking.
- RAID Support (Levels 0, 1, 5, 10): Enhanced data security and performance.
- Multiple Storage Options: 7 supported drives with 4 HDDs, accommodating various HDD & SSD types.
Connectivity is key, and the ASUS B650E-PLUS excels with:
- USB Connectivity: Including 6 USB 2.0 ports and 6 USB 3.2 ports for easy attachment of peripherals.
- 2.5 Gigabit Ethernet: Ensures fast and reliable network connections.
- Wi-Fi 6E (802.11ax): Enjoy blazing-fast wireless speeds for gaming or streaming.
- Bluetooth 5.3: Connect effortlessly to your wireless devices.
Audio performance is not left behind, featuring a Realtek ALC1220P Chip providing 7.1 channel output for an immersive experience. Coupled with various expansion slots including PCIe Gen 4 and 5 options, the motherboard caters to all your upgrade needs.
With a form factor of ATX, it fits standard cases seamlessly. The ASUS B650E-PLUS also includes a user-friendly UEFI AMI BIOS for easy system configuration. For gamers and professionals alike, this motherboard delivers a comprehensive solution for building high-performance PCs.
Enhance your computing experience with the ASUS B650E-PLUS WIFI Motherboard – your gateway to a powerful, future-proof PC.
Features
Processor
- Processor manufacturer:AMD
- Processor socket:Socket AM5
- Compatible processor series:AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
- Supported processor sockets:Socket AM5
Memory
- Supported memory types:DDR5-SDRAM
- Number of memory slots:4
- Memory slots type:DIMM
- Memory channels:Dual-channel
- ECC сompatibility:ECC & Non-ECC
- Maximum internal memory:256 GB
- Unbuffered memory:Yes
Storage controllers
- Supported storage drive types:HDD & SSD
- Supported storage drive interfaces:M.2, SATA III
- Number of HDDs supported:4
- Number of storage drives supported:7
- RAID support:Yes
- RAID levels:0, 1, 5, 10
Graphics
- Parallel processing technology support:Not supported
Internal I/O
- USB 2.0 connectors:2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors:1
- USB 3.2 Gen 2 (3.1 Gen 2) connectors:1
- Number of SATA III connectors:4
- Front panel audio connector:Yes
- Front panel connector:Yes
- ATX Power connector (24-pin):Yes
- CPU fan connector:Yes
- Number of CPU fan connectors:1
- Number of chassis fan connectors:4
- Chassis intrusion connector:Yes
- EPS power connector (8-pin):Yes
- Number of COM connectors:1
- Thunderbolt headers:1
- 12V power connector:Yes
Rear panel I/O ports
- USB 2.0 ports quantity:6
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity:3
- USB 3.2 Gen 2x2 Type-C ports quantity:1
- Ethernet LAN (RJ-45) ports:1
- HDMI ports quantity:1
- DisplayPorts quantity:1
- WiFi-AP antenna jack:1
Network
- Ethernet LAN:Yes
- Ethernet interface type:2.5 Gigabit Ethernet
- Wi-Fi:Yes
- Top Wi-Fi standard:Wi-Fi 6E (802.11ax)
- Wi-Fi standards:Wi-Fi 6E (802.11ax)
- Bluetooth:Yes
- Bluetooth version:5.3
Features
- Motherboard chipset:AMD B650
- Audio chip:Realtek ALC1220P
- Audio output channels:7.1 channels
- Component for:PC
- Motherboard form factor:ATX
- Motherboard chipset family:AMD
- Windows operating systems supported:Windows 10 x64, Windows 11
Expansion slots
- PCI Express x1 (Gen 4.x) slots:2
- PCI Express x16 (Gen 4.x) slots:1
- PCI Express x16 (Gen 5.x) slots:1
- Number of M.2 (M) slots:3
- 1st M.2 largest key size:2280
- 1st M.2 highest PCI Express generation:5.0
- 2nd M.2 largest key size:22110
- 2nd M.2 highest PCI Express generation:4.0
- 3rd M.2 largest key size:2280
- 3rd M.2 highest PCI Express generation:4.0
BIOS
- BIOS type:UEFI AMI
- BIOS memory size:256 Mbit
Packaging data
- Package width:353 mm
- Package depth:273 mm
- Package height:68 mm
- Package weight:1.39 kg
Weight & dimensions
- Width:305 mm
- Depth:244 mm
Packaging content
- Cables included:SATA
- Antenna included:Yes
