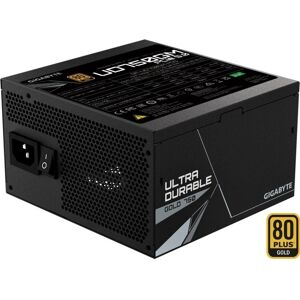

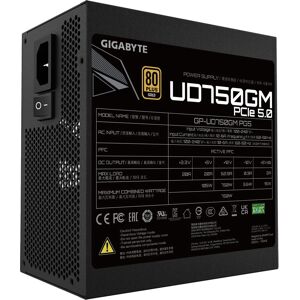

Gigabyte UD750GM PG5 Power Supply - 750W, Black, 80 Plus Gold
Our shoppers love
£80.00 from Amazon.co.uk
- Supports PCIe Gen 5.0 graphics cards •
- 80 Plus Gold certified efficiency •
- Supports Intel ATX 3.0 standard •
- High-quality Japanese capacitors •
- More features
Offers updated on: 04/11/2025. Paid and non-exhaustive ads. ★ The ratings are generated from multiple sources, including data provided by the merchant and publicly available information.
Description
Introducing the Gigabyte UD750GM PG5 Power Supply, a robust and reliable 750W powerhouse designed to elevate your PC's performance. Engineered to provide efficiency and stability, this power supply unit is 80 PLUS Gold certified, meaning it delivers an impressive efficiency of up to 90%, ensuring lower energy bills and less heat generation.
With an active Power Factor Correction (PFC) type, the Gigabyte UD750GM effectively manages input current while providing stable voltage output. Here are some of its standout features:
- Total Power: 750W
- AC Input Voltage: 100 - 240V
- Combined Power (+12V): 732W
- Efficiency: 90% under typical loads
- Protection Features: Over current, over power, and short circuit protection
- Cabling Type: Fully-Modular for easy cable management
- Cooling Type: Active, featuring a 12cm fan for optimal heat dissipation
The UD750GM is not just about power; it boasts a variety of connectors to support all your components. With 8 SATA power connectors, 4 PCI Express power connectors, and multiple Molex connectors, this PSU is your versatile solution for any build.
Imagine putting together a high-end gaming rig or a powerful workstation; the Gigabyte UD750GM ensures your components receive clean, stable power. Its well-thought-out dimensions—150mm wide, 140mm deep, and 86mm high—allow it to fit seamlessly into your ATX cases.
Whether you're a casual gamer or a professional, this power supply can handle heavy workloads thanks to its impressive maximum output currents of 61A on the +12V rail. Plus, with a mean time between failures (MTBF) of 100,000 hours, you can trust it to keep your system running smoothly for years to come.
In summary, the Gigabyte UD750GM PG5 Power Supply is the ultimate choice for anyone looking to build a powerful and efficient PC. Explore the features for yourself and make the switch to reliable power today!
Features
Power
- Total power:750 W
- AC input voltage:100 - 240 V
- Input current:12 A
- Power Factor Correction (PFC) type:Active
- Combined power (+3.3V):105 W
- Combined power (+12V):732 W
- Combined power (+5V):105 W
- Combined power (-12V):3.6 W
- Combined power (+5Vsb):15 W
- Max output current (+3.3V):20 A
- Max output current (+12V):61 A
- Max output current (+5V):20 A
- Max output current (-12V):2.3 A
- Max output current (+5Vsb):3 A
- Hold time:16 ms
- Efficiency:90%
- Power protection features:Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Ports & interfaces
- Motherboard power connector:20+4 pin ATX
- Motherboard power cable length:61 cm
- Number of SATA power connectors:8
- SATA power cable length:150,300,450,600 mm
- Peripheral (Molex) power connectors (4-pin):3
- Peripheral (Molex) power cable length:120,500 mm
- EPS power connector (4+4 pin):Yes
- PCI Express power connectors (6+2 pin):4
- PCI Express power cable length:60 cm
- CPU power connector (4+4 pin):Yes
- CPU power cable length:60 cm
- ATX power connector (20+4 pin):Yes
- Floppy drive power connector:1
- Floppy disk drive connector:Yes
- Floppy disk drive cable length:15 cm
- Cabling type:Fully-Modular
Performance
- 80 PLUS certification:80 PLUS Gold
- Purpose:PC
- Power supply unit (PSU) form factor:ATX
- ATX version:2.31
- Bearing technology:HYB
- Mean time between failures (MTBF):100000 h
Design
- Product colour:Black
- Cooling type:Active
- Fan diameter:12 cm
- Number of fans:1 fan(s)
- Fan location:Top
- On/off switch:Yes
Packaging content
- Cables included:CPU, PCIe, Peripheral (Molex), SATA
Weight & dimensions
- Width:150 mm
- Depth:140 mm
- Height:86 mm
Logistics data
- Harmonized System (HS) code:84733020
