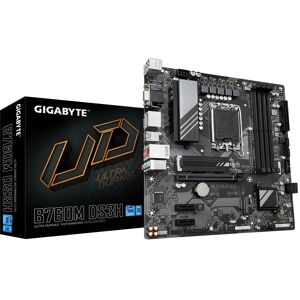

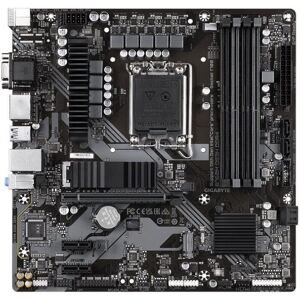

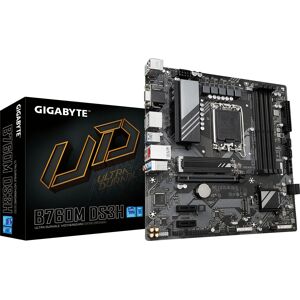

Gigabyte B760M DS3H Motherboard - Supports Latest Intel CPUs - Micro ATX
- Supports DDR4 memory •
- Micro ATX form factor •
- LGA1700 socket •
- B760 chipset •
- More features
Offers updated on: 04/11/2025. Paid and non-exhaustive ads. ★ The ratings are generated from multiple sources, including data provided by the merchant and publicly available information.
Description
Discover the power of the Gigabyte B760M DS3H Motherboard, designed to support the latest Intel CPUs and enhance your computing experience.
With a sleek micro ATX form factor, this motherboard is perfect for both casual users and hardcore gamers looking for reliable performance. Released recently, it boasts a variety of features that cater to your needs.
- Processor Compatibility: Designed for Intel® processors including Celeron®, Core™ i3, i5, i7, and even the powerful Core™ i9.
- Memory Support: Supports up to 192 GB of DDR5-SDRAM with a maximum memory clock speed of 7600 MHz.
- Storage Options: Capable of supporting both HDD and SSD with RAID configurations to elevate your data management.
- Connectivity: Multiple USB ports including USB 3.2 Gen 2 Type-C for fast data transfer.
- Audio Capabilities: Experience immersive sound with 7.1 channel audio output.
Perfect for gamers, content creators, or anyone looking to build a powerhouse PC, the B760M DS3H motherboard ensures a seamless and responsive computing experience. Its advanced features guarantee that you have ample capabilities for multitasking and high-speed data handling.
From gaming to graphic design, this motherboard adapts to any high-demand application, making it an excellent choice for enthusiasts. Easy installation, extensive compatibility, and robust performance firmly place this motherboard in the spotlight.
Enhance your builds with added RGB LED headers for a personalized touch, and enjoy top-tier cooling features with comprehensive health monitoring. With a 3-year warranty backing your investment, the Gigabyte B760M DS3H offers peace of mind alongside exceptional performance.
Don't settle for less; upgrade to the Gigabyte B760M DS3H and experience next-gen technology today!
Features
Processor
- Processor manufacturer:Intel
- Processor socket:LGA 1700
- Compatible processor series:Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
- Supported processor sockets:LGA 1700
- Maximum internal memory supported by processor:192 GB
Memory
- Supported memory types:DDR5-SDRAM
- Number of memory slots:4
- Memory slots type:DIMM
- Memory channels:Dual-channel
- ECC сompatibility:ECC & Non-ECC
- Supported memory clock speeds:4000,4800,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200,7400,7600 MHz
- Supported memory clock speed (max):7600 MHz
- Maximum internal memory:192 GB
- Supported memory module capacities:1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB, 48GB
- Unbuffered memory:Yes
Storage controllers
- Supported storage drive types:HDD & SSD
- Supported storage drive interfaces:M.2, SATA III
- Number of HDDs supported:4
- Number of storage drives supported:6
- RAID support:Yes
- RAID levels:0, 1, 5, 10
Graphics
- Parallel processing technology support:Not supported
- Maximum resolution:4096 x 2304 pixels
- HDCP:Yes
- DirectX version:12.0
Internal I/O
- USB 2.0 connectors:2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors:1
- Number of SATA III connectors:4
- S/PDIF out connector:Yes
- Front panel audio connector:Yes
- Front panel connector:Yes
- ATX Power connector (24-pin):Yes
- CPU fan connector:Yes
- EPS power connector (8-pin):Yes
- TPM connector:Yes
- Parallel connector:Yes
- Serial port headers:1
- 12V power connector:Yes
- RGB LED pin header:Yes
Rear panel I/O ports
- USB 2.0 ports quantity:2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:3
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity:1
- Ethernet LAN (RJ-45) ports:1
- PS/2 ports quantity:1
- VGA (D-Sub) ports quantity:1
- HDMI ports quantity:1
- HDMI version:2.0
- DisplayPorts quantity:2
- DisplayPort version:1.2
- Headphone outputs:3
- Microphone in:Yes
- USB connector type:USB Type-A, USB Type-C
Network
- Ethernet LAN:Yes
- Ethernet interface type:2.5 Gigabit Ethernet
- Wi-Fi:No
Features
- Motherboard chipset:Intel B760 Express
- Audio output channels:7.1 channels
- Product colour:Brown
- PC health monitoring:Fan, Temperature, Voltage, Water cooling
- Component for:PC
- Motherboard form factor:micro ATX
- Motherboard chipset family:Intel
- Windows operating systems supported:Windows 10 x64, Windows 11 x64
Expansion slots
- PCI Express x1 slots:2
- PCI Express x16 slots:1
- Number of M.2 (M) slots:2
BIOS
- BIOS type:UEFI AMI
- BIOS memory size:128 Mbit
- ACPI version:5.0
- Clear CMOS jumper:Yes
- Desktop Management Interface (DMI) version:2.7
- System Management BIOS (SMBIOS) version:2.7
Logistics data
- Country of origin:China
- Products per shipping (inner) case:1 pc(s)
Battery
- Battery weight:3 g
- Lithium weight per battery:0.07 g
- Number of battery cells:1
- Battery technology:Lithium-Manganese Dioxide (LiMnO2)
- Battery type:CR2032
Packaging data
- Package width:265 mm
- Package depth:265 mm
- Package height:54 mm
- Package weight:1.12 kg
Weight & dimensions
- Width:244 mm
- Depth:244 mm
- Height:35 mm
Packaging content
- Cables included:SATA
- Bundled software:Norton Internet Security
Technical details
- Warranty period:3 year(s)
