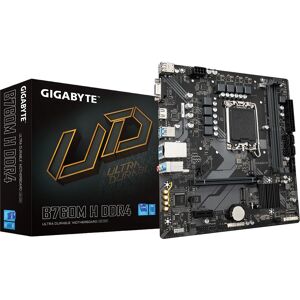

Gigabyte B760M H DDR4 Motherboard - Supports Intel Core 14Th Gen - Micro ATX - Black
Our shoppers love
£80.41 from Amazon.co.uk
- Supports Intel LGA 1700 processors •
- Micro ATX form factor •
- DDR4 memory support •
- Multiple USB and SATA ports •
- More features
Offers updated on: 14/09/2025. Paid and non-exhaustive ads. ★ The ratings are generated from multiple sources, including data provided by the merchant and publicly available information.
Description
Introducing the Gigabyte B760M H DDR4 Motherboard, designed to support Intel Core 14th Gen processors for potent performance and reliability. Built with the micro ATX form factor, this motherboard blends efficiency and capability, perfect for a variety of computing needs.
With the LGA 1700 processor socket, this motherboard is compatible with a wide range of Intel processors including the Intel® Celeron® and Intel® Pentium® Gold series. It supports a maximum internal memory of 64GB, utilizing DDR4-SDRAM across 2 DIMM slots for dual-channel memory configuration.
Experience versatility with supported memory clock speeds ranging from 2133 MHz to 3200 MHz, ensuring smooth multitasking and high-performance applications. The motherboard also includes multiple interfaces and connectors:
- 4 SATA III connectors for robust data storage solutions.
- 2 M.2 slots for lightning-fast SSDs.
- USB 3.2 Gen 1 ports – a total of 4 Type-A and 2 USB 2.0 connectors, enabling quick data transfer.
- HDMI and DisplayPort outputs for seamless connectivity to displays.
The Intel B760 Express chipset powers the motherboard’s features, while the Realtek ALC897 audio chip offers 7.1 channel HD audio for an enhanced audiovisual experience. Whether you’re assembling a home theater PC or a gaming machine, this motherboard rises to the occasion.
Optimized for Windows 10 and Windows 11, the Gigabyte B760M ensures that your system can handle today’s demanding software. It also supports RAID configurations for advanced data protection and performance.
Noteworthy is its elegant brown color and compact dimensions of 230mm x 215mm x 35mm, fitting comfortably into standard ATX cases. The motherboard comes with a generous 3-year warranty, reflecting its durability and Gigabyte’s confidence in quality. This motherboard is also designed with users in mind, featuring an ACPI version 5.0 and UEFI AMI BIOS for straightforward management.
In conclusion, the Gigabyte B760M H DDR4 Motherboard is an excellent choice for any PC builder seeking reliability, performance, and cutting-edge technology. Its functionality, combined with a compact form, makes it ideal for both entry-level and advanced users who demand high-quality performance from their systems.
Features
Processor
- Processor manufacturer:Intel
- Processor socket:LGA 1700
- Compatible processor series:Intel® Celeron®, Intel® Pentium® Gold
- Maximum number of SMP processors:1
- Supported processor sockets:LGA 1700
- Maximum internal memory supported by processor:64 GB
Memory
- Supported memory types:DDR4-SDRAM
- Number of memory slots:2
- Memory slots type:DIMM
- Memory channels:Dual-channel
- ECC сompatibility:Non-ECC
- Supported memory clock speeds:2133,2400,2666,2933,3000,3200 MHz
- Supported memory clock speed (max):3200 MHz
- Maximum internal memory:64 GB
- Supported memory module capacities:1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB
Storage controllers
- Supported storage drive interfaces:M.2, SATA III
- Number of HDDs supported:4
- Number of storage drives supported:6
- RAID support:Yes
- RAID levels:0, 1, 5, 10
Graphics
- Parallel processing technology support:Not supported
- DirectX version:12.1
Internal I/O
- USB 2.0 connectors:2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors:1
- Number of SATA III connectors:4
- Total number of SATA connectors:4
- Front panel audio connector:Yes
- Front panel connector:Yes
- ATX Power connector (24-pin):Yes
- CPU fan connector:Yes
- EPS power connector (8-pin):Yes
- TPM connector:Yes
- Serial port headers:1
- RGB LED pin header:Yes
Rear panel I/O ports
- USB 2.0 ports quantity:2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:4
- Ethernet LAN (RJ-45) ports:1
- VGA (D-Sub) ports quantity:1
- HDMI ports quantity:1
- HDMI version:1.4
- DisplayPorts quantity:1
- DisplayPort version:1.4
Network
- Ethernet LAN:Yes
- Ethernet interface type:Gigabit Ethernet
- Wi-Fi:No
Features
- Motherboard chipset:Intel B760 Express
- Audio chip:Realtek ALC897
- Audio output channels:7.1 channels
- Product colour:Brown
- Component for:PC
- Motherboard form factor:micro ATX
- Motherboard chipset family:Intel
- Power source type:ATX
- Windows operating systems supported:Windows 10, Windows 11
Expansion slots
- PCI Express x16 (Gen 4.x) slots:1
- Number of M.2 (M) slots:2
BIOS
- BIOS type:UEFI AMI
- BIOS memory size:128 Mbit
- ACPI version:5.0
- Clear CMOS jumper:Yes
- Desktop Management Interface (DMI) version:2.7
- System Management BIOS (SMBIOS) version:2.7
Logistics data
- Country of origin:China
- Products per shipping (inner) case:1 pc(s)
Battery
- Battery weight:3 g
- Lithium weight per battery:0.07 g
- Number of battery cells:1
- Battery technology:Lithium-Manganese Dioxide (LiMnO2)
- Battery type:CR2032
Packaging data
- Package width:265 mm
- Package depth:265 mm
- Package height:54 mm
- Package weight:825 g
Weight & dimensions
- Width:230 mm
- Depth:215 mm
- Height:35 mm
Packaging content
- Batteries included:Yes
Technical details
- Warranty period:3 year(s)
