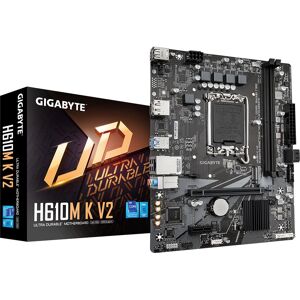

Gigabyte H610M K V2 Motherboard - Supports 12th-14th Gen Intel, DDR5, LGA 1700

Processor

• Processor manufacturer:Intel
• Processor socket:LGA 1700
• Compatible processor series:Intel® Celeron®, Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i3 14th Gen, Intel Core i5 12th Gen, Intel Core i5 13th Gen, Intel Core i5 14th Gen, Intel Core i7 12th Gen, Intel Core i7 13th Gen, Intel Core i7 14th Gen, Intel Core i9 12th Gen, Intel Core i9 13th Gen, Intel Core i9 14th Gen, Intel® Pentium® Gold
• Supported processor sockets:LGA 1700

Memory

• Supported memory types:DDR5-SDRAM
• Number of memory slots:2
• Memory slots type:DIMM
• Memory channels:Dual-channel
• ECC сompatibility:ECC & Non-ECC
• Supported memory clock speeds:5600,5200,4800,4400 MHz
• Supported memory clock speed (max):5600 MHz
• Maximum internal memory:128 GB
• Unbuffered memory:Yes
• Maximum internal memory per slot:64 GB

Storage controllers

• Supported storage drive types:HDD & SSD
• Supported storage drive interfaces:M.2, PCI Express 3.0, SATA III
• Number of HDDs supported:2
• Number of storage drives supported:3

Graphics

• Parallel processing technology support:Not supported
• Maximum resolution:4096 x 2160 pixels
• HDCP:Yes
• DirectX version:12.0

Internal I/O

• USB 2.0 connectors:1
• USB 3.2 Gen 1 (3.1 Gen 1) connectors:1
• Number of SATA III connectors:2
• Front panel audio connector:Yes
• Front panel connector:Yes
• ATX Power connector (24-pin):Yes
• CPU fan connector:Yes
• Number of CPU fan connectors:1
• EPS power connector (8-pin):Yes
• Number of EPS power connectors (8-pin):1
• TPM connector:Yes

Rear panel I/O ports

• USB 2.0 ports quantity:4
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:2
• Ethernet LAN (RJ-45) ports:1
• HDMI ports quantity:1
• HDMI version:2.1
• DisplayPorts quantity:1
• DisplayPort version:1.2
• Headphone outputs:1
• Line-in:Yes
• Microphone in:Yes

Network

• Ethernet LAN:Yes
• Ethernet interface type:Gigabit Ethernet
• LAN controller:Realtek RTL8111H
• Wi-Fi:No

Features

• Motherboard chipset:Intel H610
• Audio chip:Realtek ALC897
• Audio output channels:7.1 channels
• Product colour:Dark brown
• PC health monitoring:Fan, Temperature, Voltage, Water cooling
• Component for:PC
• Motherboard form factor:micro ATX
• Motherboard chipset family:Intel
• Cooling type:Passive
• Power source type:ATX
• Windows operating systems supported:Windows 10 x64, Windows 11 x64
