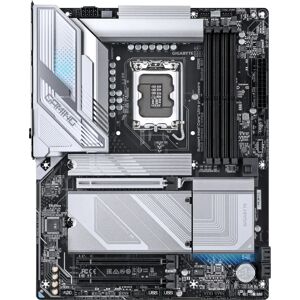

Gigabyte B860 Gaming X WIFI6E - Motherboard - ATX
Our shoppers love
£169.99 from Amazon.co.uk
- Supports Intel Core Ultra Processors •
- DDR5 RAM up to 9066 MHz •
- PCIe 5.0 x16 slot •
- Dual M.2 connectors PCIe 4.0 •
- More features
Offers updated on: 15/09/2025. Paid and non-exhaustive ads. ★ The ratings are generated from multiple sources, including data provided by the merchant and publicly available information.
Description
Introducing the Gigabyte B860 Gaming X WIFI6E, the ultimate motherboard designed to elevate your gaming experience. With its release, this powerful ATX motherboard showcases cutting-edge technology to cater to both gamers and PC enthusiasts alike.
Packed with features, the B860 Gaming X supports Intel’s latest processors through the LGA 1851 socket, ensuring exceptional performance and compatibility. Enjoy smooth multitasking capabilities with a dual-channel DDR5-SDRAM memory support, with a maximum internal memory of up to 256 GB and speeds reaching up to 9066 MHz.
This motherboard is tailored for expandability, featuring:
- 4 DIMM memory slots
- 3 M.2 slots for ultra-fast SSD storage
- RAID support for advanced data management
The B860 also excels in connectivity, boasting multiple USB ports and a robust 2.5 Gigabit Ethernet LAN for lightning-fast internet access. It includes:
- 5 USB 2.0 ports
- 1 USB4 Gen 2x2 port
- HDMI 2.1 and DisplayPort 2.1 outputs
Your audio experience is taken to the next level with high-definition audio, supporting 7.1 channels through the Realtek ALC897 audio chip. Whether gaming or streaming, the sound quality will immerse you fully into your experience.
Additionally, the B860 Gaming X comes equipped with Wi-Fi 6E for unprecedented wireless speeds and stability, alongside Bluetooth 5.3 for seamless device connectivity. With dual Wi-Fi antennas included, say goodbye to lag and hello to uninterrupted gameplay!
The motherboard also prioritizes user experience with intuitive PC health monitoring features, allowing users to track voltage, temperatures, and fan speeds effortlessly. Furthermore, its stylish dark brown color and RGB header pins offer customization possibilities to match your setup.
When considering upgrades, the B860 is designed with the future in mind, fully compatible with Windows 11 and built to facilitate high-performance gaming sessions or intense workloads with ease.
In short, the Gigabyte B860 Gaming X WIFI6E motherboard stands as a centerpiece for any modern gaming rig, ready to meet the demands of today's most challenging applications and games.
Features
Processor
- Processor manufacturer:Intel
- Processor socket:LGA 1851 (Socket V1)
- Compatible processor series:Intel® Core™ Ultra (Series 1), Intel Core Ultra (Series 2)
- Supported processor sockets:LGA 1851
Memory
- Supported memory types:DDR5-SDRAM
- Number of memory slots:4
- Memory slots type:DIMM
- Memory channels:Dual-channel
- ECC сompatibility:ECC & Non-ECC
- Supported memory clock speeds:5600,6400,9066 MHz
- Supported memory clock speed (max):9066 MHz
- Maximum internal memory:256 GB
- Unbuffered memory:Yes
- Maximum internal memory per slot:64 GB
Storage controllers
- Supported storage drive types:HDD & SSD
- Supported storage drive interfaces:M.2, SATA III
- Number of HDDs supported:4
- Number of storage drives supported:7
- RAID support:Yes
- RAID levels:0, 1, 5, 10
Graphics
- Parallel processing technology support:Not supported
- Maximum resolution:4096 x 2160 pixels
- HDCP:Yes
- DirectX version:12.0
Internal I/O
- USB 2.0 connectors:2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors:1
- USB 3.2 Gen 2 (3.1 Gen 2) connectors:1
- Number of SATA III connectors:4
- S/PDIF out connector:Yes
- Front panel audio connector:Yes
- Front panel connector:Yes
- ATX Power connector (24-pin):Yes
- CPU fan connector:Yes
- Number of CPU fan connectors:2
- Number of chassis fan connectors:4
- EPS power connector (8-pin):Yes
- Number of EPS power connectors (8-pin):1
- TPM connector:Yes
- Number of water pump connectors:2
- RGB LED pin header:Yes
- Number of RGB LED pin headers:4
Rear panel I/O ports
- USB 2.0 ports quantity:5
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:2
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity:1
- USB4 Gen 2x2 ports quantity:1
- Ethernet LAN (RJ-45) ports:1
- HDMI ports quantity:1
- HDMI version:2.1
- DisplayPorts quantity:1
- DisplayPort version:2.1
- Headphone outputs:1
- Line-in:Yes
- Microphone in:Yes
- WiFi-AP antenna jack:2
Network
- Ethernet LAN:Yes
- Ethernet interface type:2.5 Gigabit Ethernet
- LAN controller:Realtek RTL8125
- Wi-Fi:Yes
- Top Wi-Fi standard:Wi-Fi 6E (802.11ax)
- Wi-Fi standards:802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
- WLAN controller model:Intel Wi-Fi 6E AX211
- Bluetooth:Yes
- Bluetooth version:5.3
Features
- Motherboard chipset:Intel B860
- Audio chip:Realtek ALC897
- Audio output channels:7.1 channels
- Product colour:Dark brown
- PC health monitoring:Fan, Temperature, Voltage, Water cooling
- Component for:PC
- Motherboard form factor:ATX
- Motherboard chipset family:Intel
- Cooling type:Passive
- Power source type:ATX
- Windows operating systems supported:Windows 11 x64
Expansion slots
- PCI Express x16 (Gen 4.x) slots:2
- PCI Express x16 (Gen 5.x) slots:1
- Number of M.2 (M) slots:3
- 1st M.2 largest key size:25110
- 1st M.2 highest PCI Express generation:5.0
- 2nd M.2 largest key size:22110
- 2nd M.2 highest PCI Express generation:4.0
- 3rd M.2 largest key size:22110
- 3rd M.2 highest PCI Express generation:4.0
BIOS
- BIOS type:UEFI AMI
- BIOS memory size:256 Mbit
- ACPI version:5.0
- Clear CMOS jumper:Yes
- Desktop Management Interface (DMI) version:2.7
- System Management BIOS (SMBIOS) version:2.7
Logistics data
- Country of origin:China
- Products per shipping (inner) case:1 pc(s)
Battery
- Battery weight:3 g
- Lithium weight per battery:0.07 g
- Number of battery cells:1
- Battery technology:Lithium-Manganese Dioxide (LiMnO2)
- Battery type:CR2032
Packaging data
- Package width:335 mm
- Package depth:270 mm
- Package height:80 mm
- Package weight:2.21 kg
Weight & dimensions
- Width:305 mm
- Depth:244 mm
- Height:35 mm
Packaging content
- Batteries included:Yes
- Antenna included:Yes
- Screws included:Yes
- Bundled software:Norton Internet Security (OEM version) LAN bandwidth management software
Other features
- Weight:1.93 kg
Technical details
- Warranty period:3 year(s)
