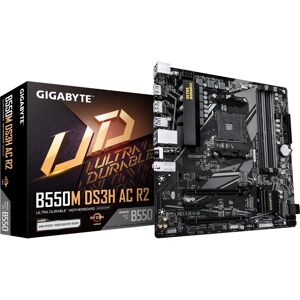

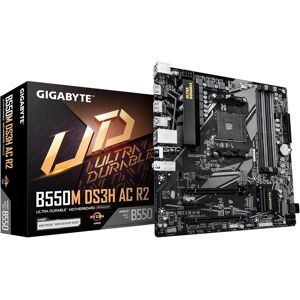

GIGABYTE B550M DS3H AC R2 - Motherboard - AMD B550 Socket AM4 Micro ATX
Our shoppers love
£88.98 from Amazon.co.uk
- Supports AMD B550 Socket AM4 CPUs •
- Micro ATX form factor •
- PCIe 4.0 M.2 connectors •
- Dual Band Wi-Fi 802.11ac + Bluetooth 4.2 •
- More features
Price: Low - High
Offers updated on: 04/11/2025. Paid and non-exhaustive ads. ★ The ratings are generated from multiple sources, including data provided by the merchant and publicly available information.
Features
Processor
- Processor manufacturer:AMD
- Processor socket:Socket AM4
- Compatible processor series:AMD Ryzen 3000 Series, AMD Ryzen 4000 Series, AMD Ryzen 5000 Series
- Supported processor sockets:Socket AM4
Memory
- Supported memory types:DDR4-SDRAM
- Number of memory slots:4
- Memory slots type:DIMM
- Memory channels:Dual-channel
- ECC сompatibility:ECC & Non-ECC
- Supported memory clock speeds:4733,4600,4400,4266,4133,4000,3866,3733,3600,3466,3400,3200,2933,2667,2400,2133 MHz
- Supported memory clock speed (max):4733 MHz
- Maximum internal memory:128 GB
- Unbuffered memory:Yes
- Maximum internal memory per slot:32 GB
Storage controllers
- Supported storage drive types:HDD & SSD
- Supported storage drive interfaces:M.2, PCI Express 3.0, PCI Express 4.0, SATA III
- Number of HDDs supported:4
- Number of storage drives supported:6
- RAID support:Yes
- RAID levels:0, 1, 10
Graphics
- Parallel processing technology support:Not supported
- Maximum resolution:5120 x 2880 pixels
- HDCP:Yes
- DirectX version:12.0
Internal I/O
- USB 2.0 connectors:1
- USB 3.2 Gen 1 (3.1 Gen 1) connectors:2
- Number of SATA III connectors:4
- Front panel audio connector:Yes
- Front panel connector:Yes
- ATX Power connector (24-pin):Yes
- CPU fan connector:Yes
- Number of CPU fan connectors:1
- Number of chassis fan connectors:2
- EPS power connector (8-pin):Yes
- Number of EPS power connectors (8-pin):1
- TPM connector:Yes
- Serial port headers:1
- RGB LED pin header:Yes
- Number of RGB LED pin headers:5
Rear panel I/O ports
- USB 2.0 ports quantity:2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:4
- Ethernet LAN (RJ-45) ports:1
- PS/2 ports quantity:1
- HDMI ports quantity:1
- HDMI version:2.1
- DisplayPorts quantity:1
- DisplayPort version:1.4
- Headphone outputs:1
- Line-in:Yes
- Microphone in:Yes
- WiFi-AP antenna jack:2
Network
- Ethernet LAN:Yes
- Ethernet interface type:Gigabit Ethernet
- LAN controller:Realtek RTL8111H
- Wi-Fi:Yes
- Top Wi-Fi standard:Wi-Fi 5 (802.11ac)
- Wi-Fi standards:802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
- WLAN controller model:Realtek RTL8821CE
- Bluetooth:Yes
- Bluetooth version:5.0
Features
- Motherboard chipset:AMD B550
- Audio chip:Realtek ALC1220-VB
- Audio output channels:7.1 channels
- Product colour:Dark brown
- PC health monitoring:Fan, Temperature, Voltage
- Component for:PC
- Motherboard form factor:micro ATX
- Motherboard chipset family:AMD
- Cooling type:Passive
- Power source type:ATX
- Windows operating systems supported:Windows 10 x64, Windows 11 x64
Expansion slots
- PCI Express x1 (Gen 3.x) slots:1
- PCI Express x16 (Gen 3.x) slots:1
- PCI Express x16 (Gen 4.x) slots:1
- Number of M.2 (M) slots:2
- 1st M.2 largest key size:2280
- 1st M.2 highest PCI Express generation:4.0
- 2nd M.2 largest key size:2280
- 2nd M.2 highest PCI Express generation:3.0
BIOS
- BIOS type:UEFI AMI
- BIOS memory size:128 Mbit
- ACPI version:5.0
- Clear CMOS jumper:Yes
- Desktop Management Interface (DMI) version:2.7
- System Management BIOS (SMBIOS) version:2.7
Logistics data
- Products per shipping (inner) case:1 pc(s)
Battery
- Battery weight:3 g
- Lithium weight per battery:0.07 g
- Number of battery cells:1
- Battery technology:Lithium-Manganese Dioxide (LiMnO2)
- Battery type:CR2032
Packaging data
- Package width:270 mm
- Package depth:268 mm
- Package height:68 mm
- Package weight:1.07 kg
Weight & dimensions
- Width:244 mm
- Depth:244 mm
- Height:35 mm
Packaging content
- Batteries included:Yes
- Antenna included:Yes
- Screws included:Yes
- Bundled software:Norton® Internet Security (OEM version) LAN bandwidth management software
Other features
- Weight:980 g
Technical details
- Warranty period:3 year(s)
