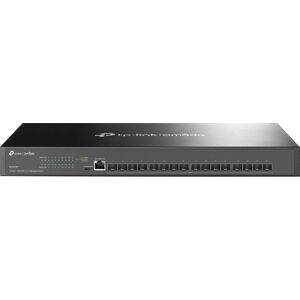

TP-Link Omada SX3016F 16-Port Managed Network Switch - Black
Our shoppers love
£549.99 from Manomano.co.uk
- 16 Gigabit Ethernet ports •
- Managed switch with advanced features •
- Rack-mountable design •
- Layer 2 switching capabilities •
- More features
Offers updated on: 05/11/2025. Paid and non-exhaustive ads. ★ The ratings are generated from multiple sources, including data provided by the merchant and publicly available information.
Description
The TP-Link Omada SX3016F 16-Port Managed Network Switch - Black is your solution for seamless connectivity, designed with cutting-edge features for high-performance network management. With its robust managed switch capabilities, this device ensures a reliable network experience for both home and business environments.
This advanced switch supports both Layer 2 and Layer 3 functionalities, allowing for versatile networking options. Here are some of its key features:
- Quality of Service (QoS) Support: Prioritize your network traffic effectively.
- Web-Based Management: Simplifies setup and configuration via an intuitive interface.
- Cloud Management: Manage your network from anywhere, at any time.
- VLAN Support: Create up to 4000 VLANs to segregate traffic.
- IP Routing: Efficiently direct network packets across interfaces.
- Traffic Classification and ARP Inspection: Enhance network performance and security.
- 10G Support: Ready for high-speed networking demands.
- Extensive Security Features: Includes MAC address filtering, loop protection, and more.
- Powerful Performance: With a switching capacity of 320 Gbit/s and a forwarding rate of 238.08 Mpps, manage heavy data loads effortlessly.
- Jumbo Frames Support: Allows for larger data packets, improving throughput.
- Comprehensive Management Protocols: Features SNMPv1/v2c/v3 to monitor and control your network.
- Rack Mounting Capability: Fits seamlessly into your existing rack setup.
Designed for various scenarios, whether it's enhancing your home network with multiple devices or managing a corporate environment with demanding traffic demands, the TP-Link Omada SX3016F is up to the task. Its operating temperature range of 0 to 45 °C coupled with a robust build ensures reliability in various conditions. The included rack mount kit and comprehensive manual make installation straightforward, while its 32.74W power consumption maintains energy efficiency.
This switch is not just about performance; it is built with security in mind. Advanced features such as DHCP snooping and AAA authentication offer rigorous protection and control over your network traffic. With LED indicators for real-time monitoring and a user-friendly interface for easy adjustments, the TP-Link Omada SX3016F 16-Port Managed Network Switch truly redefines efficient networking. Elevate your connectivity game today!
Features
Management features
- Switch type:Managed
- Switch layer:L2+/L3
- Quality of Service (QoS) support:Yes
- Web-based management:Yes
- Cloud-managed:Yes
- Traffic classification:Yes
- ARP inspection:Yes
- Configuring Location Settings (CLI):Yes
- System event log:Yes
- MIB support:RFC2925, RFC2618, RFC2620, RFC2021, RFC2819, RFC2674, RFC1493, RFC1643, RFC2233, RFC1213
Ports & interfaces
- Basic switching RJ-45 Ethernet ports type:No
- SFP+ module slots quantity:16
- Console port:RJ-45/Micro-USB
- Power connector:DC-in jack
Network
- Networking standards:IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3x
- 10G support:Yes
- Port mirroring:Yes
- IP routing:Yes
- Flow control support:Yes
- Link aggregation:Yes
- Broadcast storm control:Yes
- Rate limiting:Yes
- Spanning tree protocol:Yes
- Head-of-line (HOL) blocking:Yes
- VLAN support:Yes
- Virtual LAN features:Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
- Number of VLANs:4000
Data transmission
- Switching capacity:320 Gbit/s
- Forwarding rate:238.08 Mpps
- MAC address table:32000 entries
- Number of queues:8
- Static route:Yes
- Jumbo frames support:Yes
- Jumbo frames:9000
- Packet buffer memory:24 MB
Security
- DHCP features:DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
- Access Control List (ACL):Yes
- IGMP snooping:Yes
- Security algorithms:HTTPS, SSH, SSH-2, SSL/TLS
- MAC address filtering:Yes
- Static port security:Yes
- SSH/SSL support:Yes
- Loop protection:Yes
- BPDU filtering/protection:Yes
- IP-MAC-Port binding:Yes
- Authentication:Guest VLAN, MAC-based authentication, Port-based authentication, Web-based authentication
- Authentication type:AAA, TACACS+
- Queue scheduling algorithms:SP, WRR+SP, Weighted Round Robin (WRR)
Multicast features
- Multicast support:Yes
- Multicast Listener Discovery (MLD) snooping:Y
Protocols
- Management protocols:SNMPv1/v2c/v3, SNTP
- IPv4 & IPv6 features:IPv6 Telnet, IPv6 ping, IPv6 tracert
Design
- Rack mounting:Yes
- Product colour:Black
- LED indicators:Yes
Power
- Power source:AC
- Power supply included:Yes
- AC input voltage:100 - 240 V
- AC input frequency:50/60 Hz
- Power consumption (max):32.74 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE):No
Operational conditions
- Operating temperature (T-T):0 - 45 °C
- Storage temperature (T-T):-40 - 70 °C
- Operating relative humidity (H-H):10 - 90%
- Storage relative humidity (H-H):5 - 90%
- Heat dissipation:111.71 BTU/h
Weight & dimensions
- Width:440 mm
- Depth:220 mm
- Height:44 mm
Packaging content
- Cables included:AC
- Quick start guide:Yes
- Manual:Yes
- Rack mount kit:Yes
Packaging data
- Package type:Box
Certificates
- Certification:CE, FCC, RoHS
