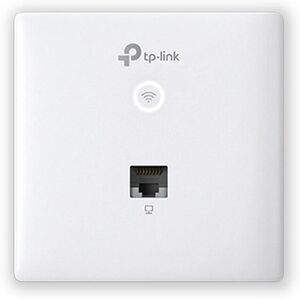

TP-Link Omada EAP230 White Dual-Band Wi-Fi Access Point

Features

• 2.4 GHz:Yes
• 5 GHz:Yes
• 6 GHz:No
• Maximum data transfer rate:1167 Mbit/s
• Maximum data transfer rate (2.4 GHz):300 Mbit/s
• Maximum data transfer rate (5 GHz):867 Mbit/s
• Ethernet LAN data rates:10,100,1000 Mbit/s
• Frequency band:2.4 - 5 GHz
• Networking standards:IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at
• Cabling technology:10/100/1000Base-T(X)
• Automatic channel selection:Yes
• Automatic channel scanning:Yes
• MIMO:Yes
• MIMO type:Multi User MIMO
• Wi-Fi Multimedia (WMM)/(WME):Yes
• VLAN support:Yes
• Virtual LAN features:Port-based VLAN, VLAN mapping
• Rate limiting:Yes
• Band steering:Yes
• Quality of Service (QoS) support:Yes
• BeamForming:Yes
• Transmitting power (CE):20 - 23 dBm

Security

• Security algorithms:64-bit WEP, 128-bit WEP, 152-bit WEP, SNMP, SNMPv2, WPA, WPA-PSK, WPA2-Enterprise, WPA2-PSK
• MAC address filtering:Yes
• Service Set Identifier (SSID) features:Multiple SSIDs
• Number of SSID supported:16
• Access Control List (ACL):Yes

Management features

• Web-based management:Yes
• Syslog:Yes

Ports & interfaces

• Ethernet LAN (RJ-45) ports:1
• WAN connection:Ethernet (RJ-45)

Power

• Power over Ethernet (PoE):Yes
• Power consumption (typical):9 W
• Power consumption (max):25.5 W

Design

• Placement:Wall
• Product colour:White
• Reset button:Yes
• LED indicators:Operation

Antenna

• Antenna type:Internal
• Antenna features:Integrated antenna
• Antennas quantity:2
• Antenna gain level (max):3.6 dBi
