GIGABYTE B760M GAMING X AX DDR4 Motherboard - Micro ATX - Intel B760 Express
- Micro ATX form factor •
- LGA 1700 socket •
- Intel B760 Express chipset •
- More features
Offers updated on: 21/12/2025. Paid and non-exhaustive ads. ★ The ratings are generated from multiple sources, including data provided by the merchant and publicly available information.
Description
Introducing the GIGABYTE B760M GAMING X AX DDR4 Motherboard, designed for serious gamers and PC builders. With the latest Intel B760 Express chipset, this micro ATX motherboard delivers exceptional performance and versatility for your computing needs.
Equipped with an LGA 1700 socket, this motherboard supports a wide range of Intel processors, from the energy-efficient Intel® Celeron® to the high-performance Intel® Core™ i9. Enjoy seamless multitasking and high-speed processing, all while powering through demanding tasks.
One of the standout features of the GIGABYTE B760M is its memory support. This board accommodates up to 128 GB of DDR4 RAM across four DIMM slots, allowing for dual-channel processing and enhanced data throughput. It supports a variety of memory speeds, ranging from 2133 MHz to a blazing maximum of 5333 MHz, giving you the flexibility to optimize performance based on your needs.
Storage options are robust on this motherboard. It supports both HDD and SSD drives, featuring four SATA III connectors and two M.2 slots, enabling you to build a fast and efficient storage solution tailored to your needs. RAID configurations are supported as well, ensuring your data's safety and performance.
The GIGABYTE B760M also excels in connectivity. It provides multiple USB ports, including three USB 3.2 Gen 1 Type-A ports, one USB 3.2 Gen 2, and even USB Type-C, accommodating a vast array of peripherals and gadgets for enhanced productivity.
For gaming enthusiasts, this motherboard supports the latest Wi-Fi 6E standard, offering superior wireless performance and connectivity. Couple this with integrated Bluetooth 5.3, and you'll experience fast file transfers and seamless connection to your devices.
The motherboard also comes equipped with 7.1 channel audio output, ensuring immersive sound quality for an enhanced gaming experience. Whether you're blasting through games or watching your favorite movies, the audio quality will not disappoint.
Built with a focus on PC health monitoring, the GIGABYTE B760M provides detailed insights into fan speed, temperature, and voltage levels, allowing you to keep your system running cool and efficient. Additionally, the board features RGB LED headers to customize your gaming setup while keeping things stylish.
This motherboard is compatible with both Windows 10 and Windows 11, ensuring smooth operation across the latest operating systems. With a long 3-year warranty, you can invest in this motherboard with the confidence of protection against defects.
Overall, the GIGABYTE B760M GAMING X AX DDR4 Motherboard is a robust choice for gamers and PC builders looking for reliability, performance, and multiple features in a compact micro ATX format.
Features
Processor
- Processor manufacturer:Intel
- Processor socket:LGA 1700
- Compatible processor series:Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
- Supported processor sockets:LGA 1700
- Maximum internal memory supported by processor:128 GB
Memory
- Supported memory types:DDR4-SDRAM
- Number of memory slots:4
- Memory slots type:DIMM
- Memory channels:Dual-channel
- ECC сompatibility:Non-ECC
- Supported memory clock speeds:2133,2400,2666,2933,3000,3200,3300,3333,3400,3466,3600,3666,3733,3800,3866,4000,4133,4266,4300,4400,4500,4600,4700,4800,4933,5000,5133,5333 MHz
- Supported memory clock speed (max):5333 MHz
- Maximum internal memory:128 GB
- Supported memory module capacities:1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB
- Unbuffered memory:Yes
Storage controllers
- Supported storage drive types:HDD & SSD
- Supported storage drive interfaces:M.2, SATA III
- Number of HDDs supported:4
- Number of storage drives supported:6
- RAID support:Yes
- RAID levels:0, 1, 5, 10
Graphics
- Parallel processing technology support:Not supported
- Maximum resolution:4096 x 2304 pixels
- HDCP:Yes
- DirectX version:12.0
Internal I/O
- USB 2.0 connectors:2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors:1
- USB 3.2 Gen 2 (3.1 Gen 2) connectors:1
- Number of SATA III connectors:4
- S/PDIF out connector:Yes
- Front panel audio connector:Yes
- Front panel connector:Yes
- ATX Power connector (24-pin):Yes
- CPU fan connector:Yes
- Number of chassis fan connectors:3
- EPS power connector (8-pin):Yes
- TPM connector:Yes
- Serial port headers:1
- Thunderbolt headers:2
- RGB LED pin header:Yes

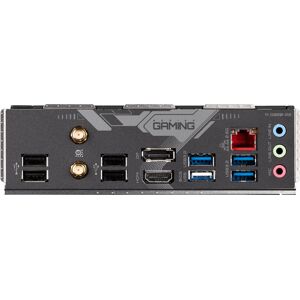

Rear panel I/O ports
- USB 2.0 ports quantity:5
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:3
- Ethernet LAN (RJ-45) ports:1
- HDMI ports quantity:1
- HDMI version:2.0
- DisplayPorts quantity:1
- Headphone outputs:1
- Line-in:Yes
- Microphone in:Yes
- WiFi-AP antenna jack:2
- USB connector type:USB Type-A, USB Type-C
Network
- Ethernet LAN:Yes
- Ethernet interface type:2.5 Gigabit Ethernet
- Wi-Fi:Yes
- Top Wi-Fi standard:Wi-Fi 6E (802.11ax)
- Wi-Fi standards:802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
- Bluetooth:Yes
- Bluetooth version:5.3
Features
- Motherboard chipset:Intel B760 Express
- Audio output channels:7.1 channels
- PC health monitoring:Fan, Temperature, Voltage, Water cooling
- Component for:PC
- Motherboard form factor:micro ATX
- Motherboard chipset family:Intel
- Power source type:ATX
- Windows operating systems supported:Windows 10, Windows 11
Expansion slots
- PCI Express x16 (Gen 3.x) slots:1
- PCI Express x16 (Gen 4.x) slots:1
- Number of M.2 (M) slots:2
BIOS
- BIOS type:UEFI AMI
- BIOS memory size:256 Mbit
- ACPI version:5.0
- Clear CMOS jumper:Yes
- Desktop Management Interface (DMI) version:2.7
- System Management BIOS (SMBIOS) version:2.7
Logistics data
- Country of origin:China
- Products per shipping (inner) case:1 pc(s)
Battery
- Battery weight:3 g
- Lithium weight per battery:0.07 g
- Number of battery cells:1
- Battery technology:Lithium-Manganese Dioxide (LiMnO2)
- Battery type:CR2032
Packaging data
- Package width:270 mm
- Package depth:268 mm
- Package height:68 mm
- Package weight:1.64 kg
Weight & dimensions
- Width:244 mm
- Depth:244 mm
- Height:32 mm
Packaging content
- Batteries included:Yes
- Bundled software:Norton Internet Security
Technical details
- Warranty period:3 year(s)
