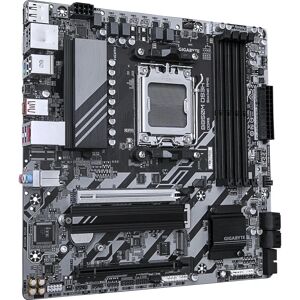

GIGABYTE B850M DS3H Motherboard - AMD Ryzen 9000 Series, DDR5, Micro ATX
Our shoppers love
£208.32 from Onbuy.com
- Supports AMD Ryzen 9000 Series CPUs •
- 16+2+2 Phases Digital VRM •
- Up to 8200MHz DDR5 (OC) •
- PCIe 5.0 + PCIe 4.0 M.2 slots •
- More features
Offers updated on: 15/09/2025. Paid and non-exhaustive ads. ★ The ratings are generated from multiple sources, including data provided by the merchant and publicly available information.
Description
Introducing the GIGABYTE B850M DS3H Motherboard, crafted for optimal performance and compatibility, making it a perfect choice for AMD Ryzen 9000 Series processors. A must-have for tech enthusiasts, this motherboard brings cutting-edge features and extensive compatibility, allowing users to unlock the full potential of their builds.
Designed for the latest in computing technology, it utilizes the AM5 socket, ensuring support for AMD's high-performance Ryzen 7000, 8000, and 9000 Series processors. It offers dual-channel memory capabilities, accommodating up to 256 GB of DDR5-SDRAM across 4 DIMM slots, with mind-boggling speed support up to 8200 MHz.
Key features of the GIGABYTE B850M DS3H include:
- Multiple Memory Options: Supports a variety of memory clock speeds, allowing for high-performance gaming and multitasking.
- Robust Storage Support: Accommodates both HDD and SSD via M.2 and SATA III interfaces, with up to 6 drives total.
- Enhanced Graphics: Supports a maximum resolution of 4096 x 2160 pixels and features HDMI 2.1 and DisplayPort 2.1 for exceptional visual output.
- Versatile Connectivity: Comes with ample USB ports including 2 USB 3.2 Gen 2 connections for rapid data transfer.
- Audio Excellence: Integrated Realtek ALC897 chip provides 7.1 channel audio output for an immersive sound experience.
- Comprehensive Power Solutions: Equipped with multiple power connectors including an 8-pin EPS and 24-pin ATX power connectors for stability.
- Advanced BIOS Features: UEFI AMI BIOS offers easy updates and enhanced system management.
This motherboard is ideal for gamers and professionals seeking a reliable and feature-rich platform for their systems. It supports both Windows 10 and 11, ensuring seamless compatibility with the latest software and applications.
Incorporate this motherboard into your PC build to experience speedy performance and impressive visuals. Whether gaming, content creation, or general computing, the GIGABYTE B850M DS3H will not disappoint!
Features
Processor
- Processor manufacturer:AMD
- Processor socket:Socket AM5
- Compatible processor series:AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
- Supported processor sockets:Socket AM5
Memory
- Supported memory types:DDR5-SDRAM
- Number of memory slots:4
- Memory slots type:DIMM
- Memory channels:Dual-channel
- ECC сompatibility:Non-ECC
- Supported memory clock speeds:4400,4800,5200,5600,6000,6200,6400,6600,6666,6800,7000,7200,7600,7800,8000,8200 MHz
- Supported memory clock speed (max):8200 MHz
- Maximum internal memory:256 GB
- Unbuffered memory:Yes
- Maximum internal memory per slot:64 GB
Storage controllers
- Supported storage drive types:HDD & SSD
- Supported storage drive interfaces:M.2, SATA III
- Number of HDDs supported:4
- Number of storage drives supported:6
- RAID support:Yes
- RAID levels:0, 1, 10
Graphics
- Parallel processing technology support:Not supported
- Maximum resolution:4096 x 2160 pixels
- HDCP:Yes
- DirectX version:12.0
Internal I/O
- USB 2.0 connectors:2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors:1
- USB 3.2 Gen 2 (3.1 Gen 2) connectors:1
- Number of SATA III connectors:4
- Total number of SATA connectors:4
- Front panel audio connector:Yes
- Front panel connector:Yes
- ATX Power connector (24-pin):Yes
- CPU fan connector:Yes
- Number of CPU fan connectors:2
- Peripheral (Molex) power connectors (4-pin):1
- EPS power connector (8-pin):Yes
- Number of EPS power connectors (8-pin):1
- TPM connector:Yes
- Serial port headers:1
- 12V power connector:Yes
- RGB LED pin header:Yes
- Number of RGB LED pin headers:4
Rear panel I/O ports
- USB 2.0 ports quantity:4
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:2
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity:1
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity:1
- Ethernet LAN (RJ-45) ports:1
- HDMI ports quantity:1
- HDMI version:2.1
- DisplayPorts quantity:2
- DisplayPort version:2.1
- Headphone outputs:1
- Microphone in:Yes
- WiFi-AP antenna jack:2
Network
- Ethernet LAN:Yes
- Ethernet interface type:2.5 Gigabit Ethernet
- Wi-Fi:No
Features
- Motherboard chipset:AMD B850
- Audio chip:Realtek ALC897
- Audio output channels:7.1 channels
- Product colour:Brown
- PC health monitoring:Fan, Temperature, Voltage, Water cooling
- Component for:PC
- Motherboard form factor:micro ATX
- Motherboard chipset family:AMD
- Power source type:ATX
- Windows operating systems supported:Windows 10 x64, Windows 11 x64
Expansion slots
- PCI Express x16 (Gen 3.x) slots:1
- PCI Express x16 (Gen 5.x) slots:1
- Number of M.2 (M) slots:2
- 1st M.2 largest key size:25110
- 1st M.2 highest PCI Express generation:5.0
- 2nd M.2 largest key size:25110
- 2nd M.2 highest PCI Express generation:4.0
BIOS
- BIOS type:UEFI AMI
- BIOS memory size:256 Mbit
- ACPI version:5.0
- Clear CMOS jumper:Yes
- Clear CMOS button:Yes
- Desktop Management Interface (DMI) version:2.7
- System Management BIOS (SMBIOS) version:2.7
Logistics data
- Country of origin:China
- Products per shipping (inner) case:1 pc(s)
Battery
- Battery weight:3 g
- Lithium weight per battery:0.07 g
- Number of battery cells:1
- Battery technology:Lithium-Manganese Dioxide (LiMnO2)
- Battery type:CR2032
Packaging data
- Package width:270 mm
- Package depth:268 mm
- Package height:68 mm
- Package weight:1.34 kg
Weight & dimensions
- Width:244 mm
- Depth:244 mm
- Height:35 mm
Packaging content
- Batteries included:Yes
- Antenna included:Yes
- Screws included:Yes
- Bundled software:Norton Internet Security (OEM version) LAN bandwidth management software
Other features
- Weight:1.14 kg
Technical details
- Warranty period:3 year(s)
